34BWSP12B4M7RT

Active

Grayhill Inc.

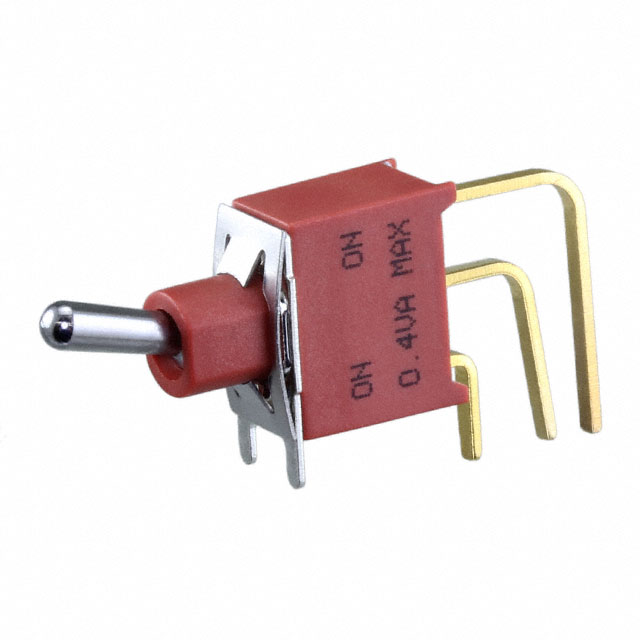

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

34BWSP12B4M7RT

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.49
		10	$ 4.05
		25	$ 3.84
		50	$ 3.68
		100	$ 3.56

Description

General part information

34BWSP Series

Toggle Switch SPDT Through Hole, Right Angle, Vertical

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	34BWSP12B4M7RT	34BWSP Series

Actuator Length [x]	7.6 mm	5.5 - 12.6 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded, 1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 VA
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle	Through Hole, Vertical, Right Angle, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 in
Switch Function	On-On	Mom-Off-Mom, On-Off-Mom, On-On, On-Off-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	20 V	20 - 125 V
Voltage Rating - DC	20 V	20 - 28 V

34BWSP Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Electrical Life	Mounting Type	Switch Function	Features	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Length [x]	Termination Style	Illumination	Current Rating (Amps)	Bushing Thread	Voltage Rating - DC	Actuator Type	Ingress Protection	Circuit	Panel Cutout Dimensions [diameter]
Grayhill Inc. 34BWSP41B4V3RT	50000 Cycles	Through Hole	Mom-Off-Mom	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	20 V	12.6 mm	PC Pin	Non-Illuminated	0.4 VA	Unthreaded	20 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT
Grayhill Inc. 34BWSP52B1M2QT	50000 Cycles		On-Off-Mom	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	125 V	5.5 mm	PC Pin	Non-Illuminated	5 A	1/4-40	28 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT	0.25 in
Grayhill Inc. 34BWSP12B4M7RT	50000 Cycles	Right Angle, Through Hole, Vertical	On-On	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	20 V	7.6 mm	PC Pin	Non-Illuminated	0.4 VA	Unthreaded	20 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT
Grayhill Inc. 34BWSP11B4M7RT	50000 Cycles	Right Angle, Through Hole, Vertical	On-On	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	20 V	12.6 mm	PC Pin	Non-Illuminated	0.4 VA	Unthreaded	20 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT
Grayhill Inc. 34BWSP32B1M2QT	50000 Cycles		On-Off-On	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	125 V	5.5 mm	PC Pin	Non-Illuminated	5 A	1/4-40	28 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT	0.25 in
Grayhill Inc. 34BWSP51B1M2RT	50000 Cycles		On-Off-Mom	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	20 V	10.6 mm	PC Pin	Non-Illuminated	0.4 VA	1/4-40	20 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT	0.25 in
Grayhill Inc. 34BWSP12B1M1RT	50000 Cycles		On-On	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	20 V	5.5 mm	Solder Lug	Non-Illuminated	0.4 VA	1/4-40	20 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT	0.25 in
Grayhill Inc. 34BWSP12B4M2RT	50000 Cycles	Through Hole	On-On	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	20 V	7.6 mm	PC Pin	Non-Illuminated	0.4 VA	Unthreaded	20 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT
Grayhill Inc. 34BWSP41B1M1QT	50000 Cycles		Mom-Off-Mom	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	125 V	10.59 mm	Solder Lug	Non-Illuminated	5 A	1/4-40	28 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT	0.25 in
Grayhill Inc. 34BWSP11B4M1RT	50000 Cycles		On-On	Epoxy Sealed Terminals	Brass, Chrome Plated	-30 ░C	85 °C	20 V	12.6 mm	Solder Lug	Non-Illuminated	0.4 VA	Unthreaded	20 V	Standard Round	IP67 - Dust Tight, Waterproof	SPDT
