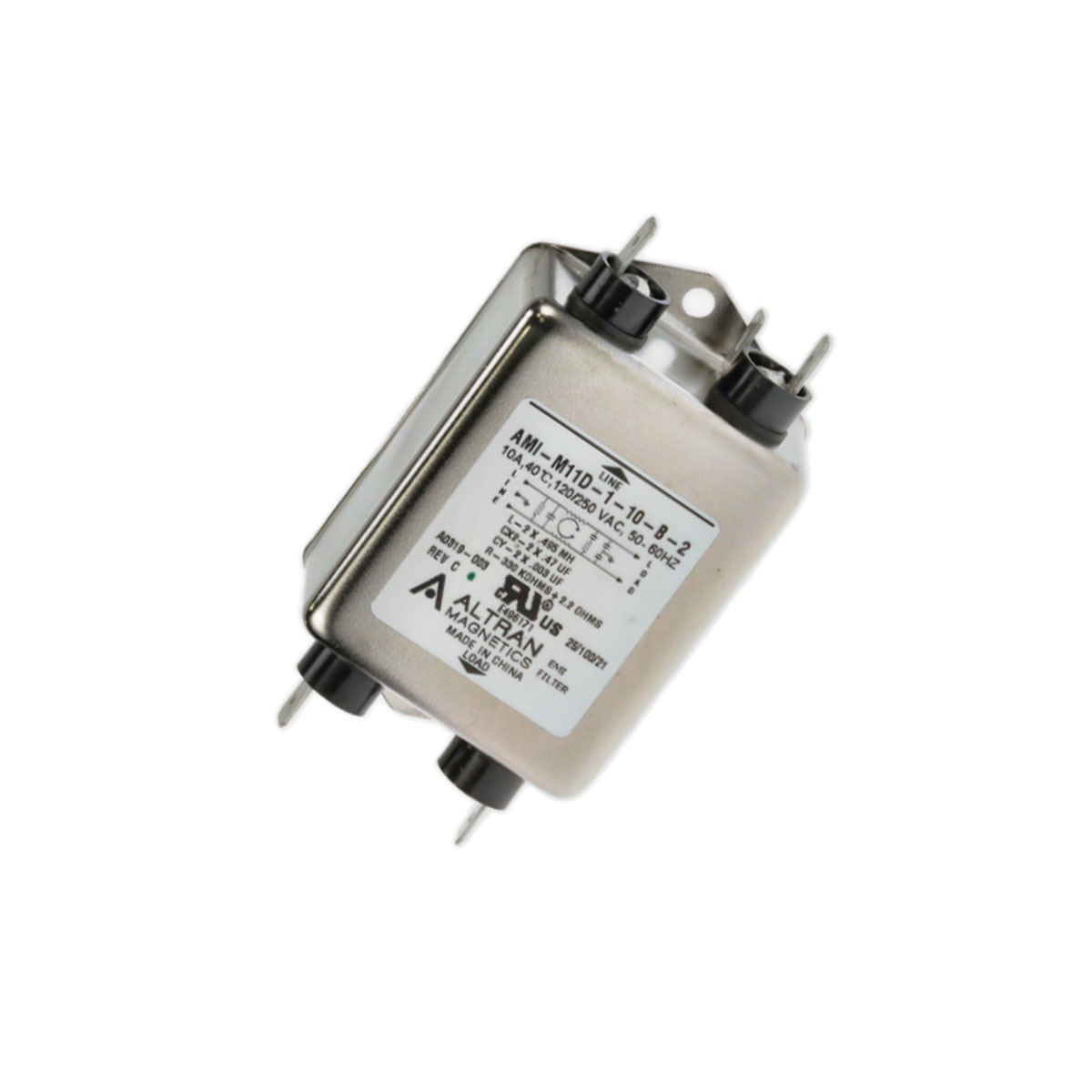

AMI-M11D-1-10-B-2
ActiveAltran Magnetics, LLC
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMI-M11D-1-10-B-2 |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 10 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 495 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.23 | |
| 10 | $ 13.24 | |||
| 25 | $ 12.20 | |||
| 50 | $ 11.48 | |||
| 100 | $ 10.79 | |||
Description
General part information
AMI-M11D-1-10-B-2
Single Phase EMC/EMI Line Filter 10 A 250V 50/60Hz Single Stage Quick Connect
