A29100-065
ActiveOmnetics
CONN D-TYPE RCPT 65P SMD R/A SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A29100-065
ActiveOmnetics
CONN D-TYPE RCPT 65P SMD R/A SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A29100-065 | MNSO Series |
|---|---|---|
| Connector Style | D-Type, Nano-D | D-Type, Nano-D |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 50 µin |
| Contact Finish Thickness | 1.27 µm | 1.27 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Signal | Signal |
| Dielectric Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Flange Feature | - | Housing/Shell |
| Flange Feature | - | 80 |
| Flange Feature | - | 0 |
| Flange Feature [Max] [custom] | 80 | 80 |
| Flange Feature [Max] [custom] | 80 | 80 |
| Flange Feature [Min] [custom] | 0 | 0 |
| Flange Feature [Min] [custom] | 0 | 0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle, Surface Mount |
| Number of Positions | 65 | 9 - 85 |
| Number of Rows | 2 | 2 |
| Shell Material, Finish | Nickel Plated, Aluminum | Nickel Plated, Aluminum |
| Shell Size, Connector Layout [custom] | 0.025 | 0.025 |
| Shell Size, Connector Layout [custom] | 0.04 | 0.04 |
| Termination | Solder | Solder |
MNSO Series
CONN D-TYPE RCPT 9P SMD R/A SLDR
| Part | Number of Positions | Contact Type | Flange Feature [Max] [custom] | Flange Feature [Min] [custom] | Flange Feature [Max] [custom] | Flange Feature [Min] [custom] | Connector Type | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Contact Finish | Connector Style | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Dielectric Material | Number of Rows | Flange Feature | Flange Feature [Max] | Flange Feature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omnetics A29100-009 | 9 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount, Right Angle | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | |||
Omnetics A29200-051 | 51 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | |||
Omnetics A29100-037 | 37 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount, Right Angle | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | |||
Omnetics A29100-025 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount, Right Angle | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | ||||
Omnetics A29200-031 | 31 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | |||
Omnetics A29100-085 | 85 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount, Right Angle | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | Housing/Shell | 80 | 0 |
Omnetics A29200-037 | 37 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | |||
Omnetics A29200-015 | 15 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | |||
Omnetics A29100-051 | 51 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount, Right Angle | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 | |||
Omnetics A29200-025 | Signal | 80 | 0 | 80 | 0 | Receptacle, Female Sockets | Aluminum, Nickel Plated | 0.025 | 0.04 | Surface Mount | Gold | D-Type, Nano-D | Copper Alloy | 50 µin | 1.27 µm | Solder | Liquid Crystal Polymer (LCP) | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 334.69 | |
| 10 | $ 263.01 | |||
| Digi-Reel® | 1 | $ 334.69 | ||
| 10 | $ 263.01 | |||
| Tape & Reel (TR) | 25 | $ 240.42 | ||
Description
General part information
MNSO Series

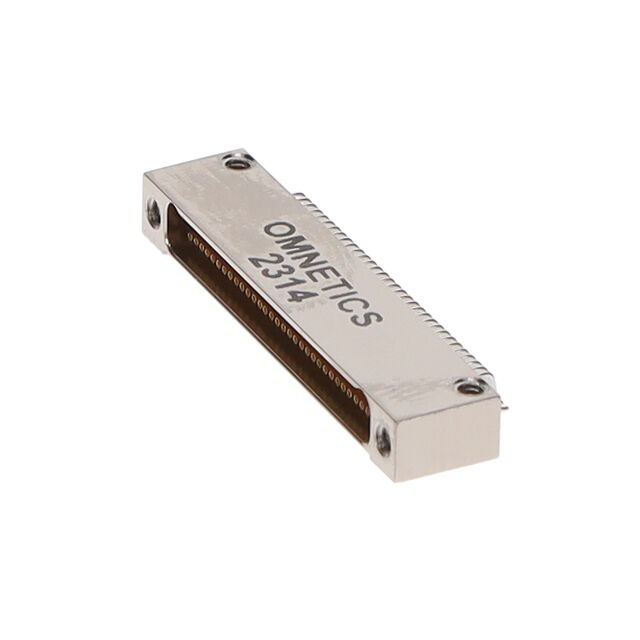

65 Position D-Type, Nano-D Receptacle, Female Sockets Connector
