General part information

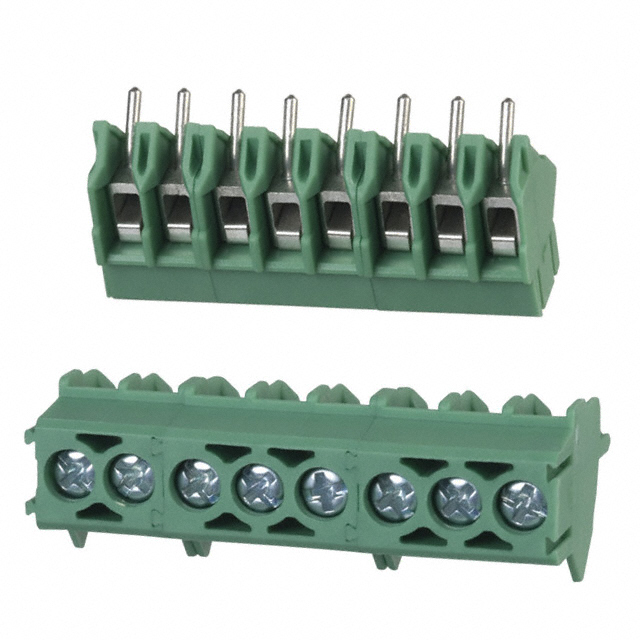

Fixed Terminal Blocks PTA 1.5/8-3.5
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1989010 |
|---|---|
| Color | Green |
| Current | 10 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 8 |
| Screw Thread | M2 |
| Torque - Screw [Max] | 2.2 Lb-In |
| Torque - Screw [Max] | 0.25 Nm |
| Torque - Screw [Min] | 0.22 Nm |
| Torque - Screw [Min] | 1.9 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw |
Fixed Terminal Blocks PTA 1.5/8-3.5
| Part | Mating Orientation | Mating Orientation | Color | Current | Features | Housing Material | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Number of Levels | Wire Termination | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Pitch [x] | Pitch [x] | Mounting Type | Screw Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1989010 | 135 ° | 45 ° | Green | 10 A | Interlocking (Side) | Polyamide (PA), Nylon | 300 V | 26 AWG | 16 AWG | 8 | 1 | Screw | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 3.5 mm | 0.138 in | Through Hole | M2 |
