EN3L5MX
ActiveSwitchcraft Inc.
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3L5MX | EN3L5M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3L5M Series

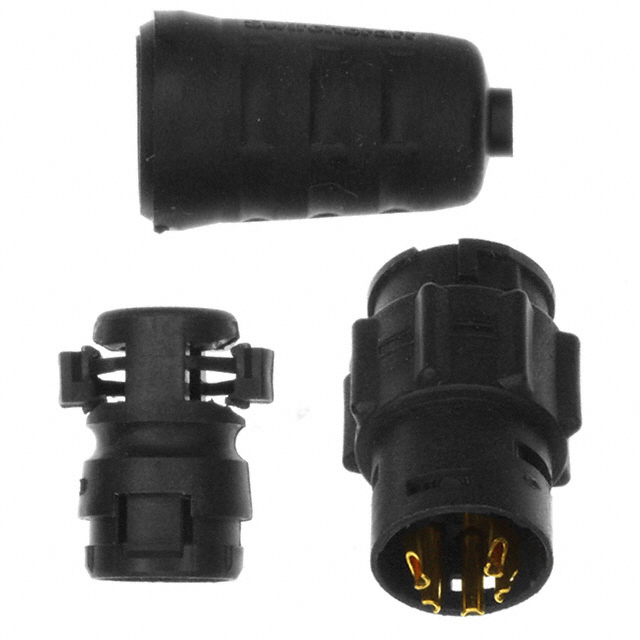

CONN RCPT MALE 5POS GOLD CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Voltage Rating | Cable Opening [diameter] | Cable Opening [diameter] | Connector Type | Fastening Type | Applications | Termination | Material Flammability Rating | Contact Material | Color | Features | Orientation | Contact Finish - Mating | Ingress Protection | Shielding | Mounting Type | Current Rating (Amps) | Insert Material | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3L5MCX | 65 °C | -40 °C | Thermoplastic | 250 VAC | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Male Pins, Receptacle | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | Crimp | UL94 V-0 | Copper Alloy | Black | Backshell, Cable Clamp | Keyed | Gold | IP66/IP68 | Unshielded | Free Hanging (In-Line) | 7.5 A | Elastomer | Plastic |
Switchcraft Inc. EN3L5MX | 65 °C | -40 °C | Thermoplastic | 250 VAC | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Male Pins, Receptacle | Bayonet Lock | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Copper Alloy | Black | Backshell, Cable Clamp | Keyed | Gold | IP66/IP68 | Unshielded | Free Hanging (In-Line) | 7.5 A | Elastomer | Plastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EN3L5M Series
5 Position Circular Connector Receptacle, Male Pins Solder Cup
