A1-XXC103S002
ActivePower Dynamics, Inc.
HIGH VOLTAGE AUTO/EV CONN
A1-XXC103S002
ActivePower Dynamics, Inc.
HIGH VOLTAGE AUTO/EV CONN
Description
General part information
A1-XXC103S002

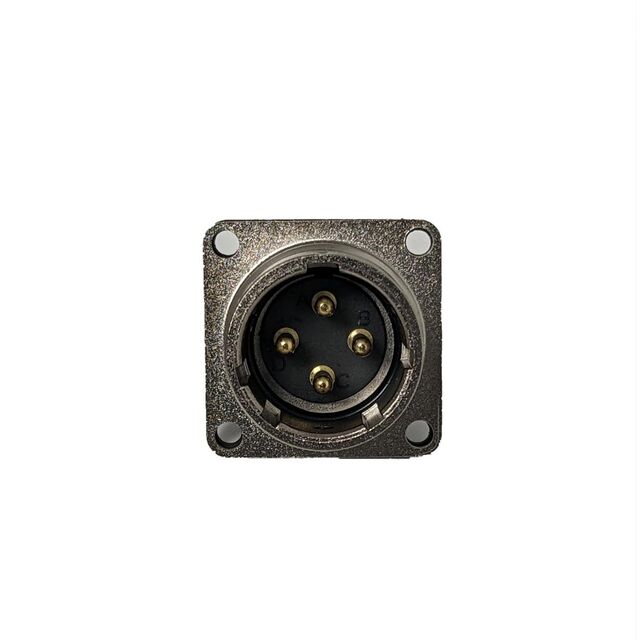

4 Position Circular Connector Receptacle, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | A1-XXC103S002 |
|---|---|
| Applications | Automotive |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Material | Copper Alloy |
| Current Rating | 245 A |
| Fastening Type | Push-Pull |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 V |
