MS3126F-14-18S
ActiveAmphenol Industrial Operations

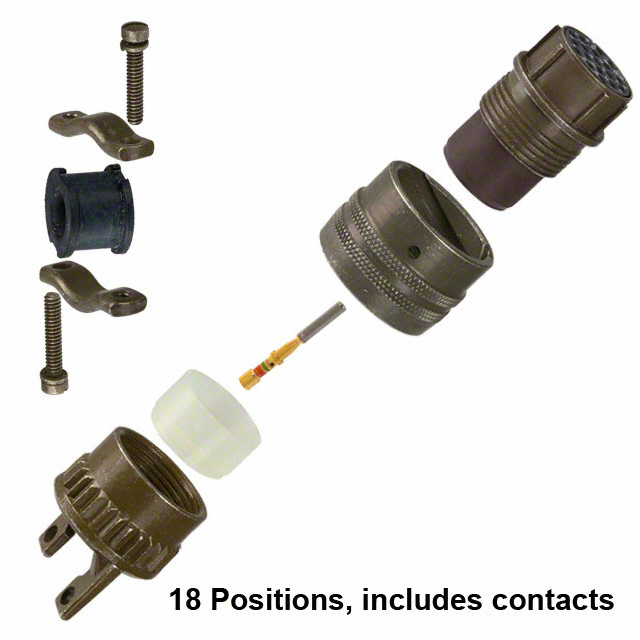

CONN PLUG FMALE 18POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3126F-14-18S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 18POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126F-14-18S | MS3126F14 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Cable Opening | - | 0.375 in |
| Cable Opening | - | 9.53 mm |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell, Strain Relief |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 18 | 18 - 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert [Max] | 18 | 18 |
| Shell Size - Insert [Min] | 14 | 14 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.49 | |
MS3126F14 Series
CONN PLUG FMALE 18POS GOLD CRIMP
| Part | Primary Material | Shielding | Number of Positions | Applications | Mounting Type | Color | Termination | Contact Material | Qualification | Ingress Protection | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Features | Shell Material | Orientation | Fastening Type | Shell Finish | Backshell Material, Plating | Connector Type | Contact Finish - Mating | Current Rating (Amps) | Voltage Rating | Cable Opening [diameter] | Cable Opening [diameter] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126F-14-18S | Metal | Unshielded | 18 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Free Hanging (In-Line) | Olive Drab | Crimp | Copper Alloy | MIL-DTL-26482 Series I | Environment Resistant | Military | -55 °C | 125 °C | Neoprene | 14 | 18 | Backshell, Cable Clamp, Coupling Nut | Aluminum | N | Bayonet Lock | Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium | Female Sockets, Plug | Gold | ||||||
Amphenol Industrial Operations MS3126F14-19PY | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F14-15SW | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F14-18SW | Metal | Unshielded | 18 | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Free Hanging (In-Line) | Olive Drab | Crimp | Copper Alloy | MIL-DTL-26482 Series I | Environment Resistant | Military | -55 °C | 125 °C | Neoprene | 14 | 18 | Coupling Nut, Strain Relief | Aluminum | W | Bayonet Lock | Olive Drab Chromate over Cadmium | Female Sockets, Plug | Gold | 7.5 A | 600 VAC | 0.375 in | 9.53 mm | |||
Amphenol Industrial Operations MS3126F14-15SX | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F14-19S(LC) | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F14-19PX | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F14-19SX | Metal | Unshielded | 19 | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Free Hanging (In-Line) | Olive Drab | Crimp | Copper Alloy | MIL-DTL-26482 Series I | Environment Resistant | Military | -55 °C | 125 °C | Neoprene | Coupling Nut, Strain Relief | Aluminum | X | Bayonet Lock | Olive Drab Chromate over Cadmium | Female Sockets, Plug | Gold | 7.5 A | 600 VAC | 0.375 in | 9.53 mm | 19 | 14 | |||
Amphenol Industrial Operations MS3126F14-12S(LC) | ||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F14-15S(LC) |
