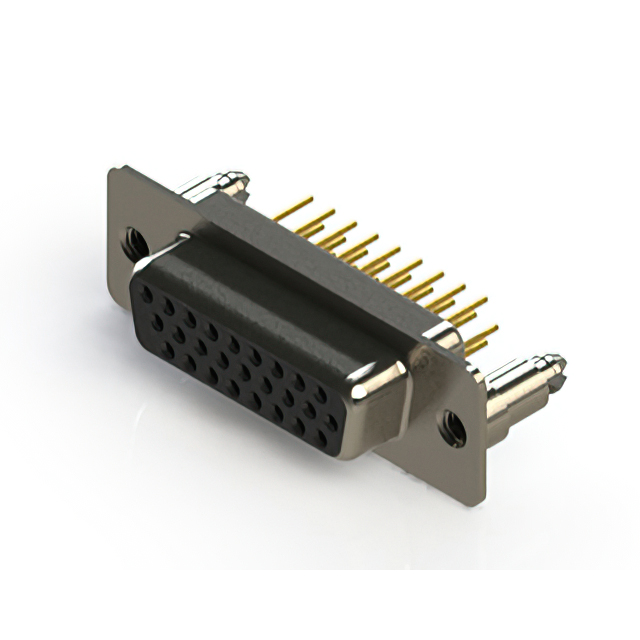

638-M26-630-BT5
ActiveEDAC Inc.
638M SERIES VERTICAL D-SUB RECEP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
638-M26-630-BT5
ActiveEDAC Inc.
638M SERIES VERTICAL D-SUB RECEP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 638-M26-630-BT5 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Shielded, Board Lock |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
638-M26 Series
| Part | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Dielectric Material | Contact Material | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Features | Mounting Type | Number of Positions | Material Flammability Rating | Connector Style | Number of Rows | Contact Type | Contact Finish Thickness | Termination | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | Housing/Shell (4-40) | -55 °C | 125 °C | Shielded | Free Hanging (In-Line) | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | |||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 | -55 °C | 125 °C | Board Lock Shielded | Through Hole | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Flash | Solder | Nickel Plated Steel | ||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 Board Side | -55 °C | 125 °C | Board Lock Shielded | Through Hole | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Solder | Nickel Plated Steel | |
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | 0.38 µm | 15 µin | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 Board Side | -55 °C | 125 °C | Board Lock Shielded | Free Hanging (In-Line) | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Nickel Plated Steel | ||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 Board Side | -55 °C | 125 °C | Board Lock Shielded | Through Hole | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Flash | Solder | Nickel Plated Steel | ||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | 0.38 µm | 15 µin | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 Board Side | -55 °C | 125 °C | Shielded | Free Hanging (In-Line) | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Nickel Plated Steel | ||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 | -55 °C | 125 °C | Shielded | Free Hanging (In-Line) | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Nickel Plated Steel | ||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 | -55 °C | 125 °C | Shielded | Free Hanging (In-Line) | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | |||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | Housing/Shell (4-40) | -55 °C | 125 °C | Shielded | Free Hanging (In-Line) | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Flash | Nickel Plated Steel | |||
EDAC Inc. | 5 A | 2 | (DA A) High Density | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | Gold | Polyamide (PA9T) Nylon 9T | Copper Alloy | 4-40 Board Side | -55 °C | 125 °C | Board Lock Shielded | Through Hole | 26 | UL94 V-0 | D-Sub High Density | 3 | Signal | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 10.17 | |
Description
General part information
638-M26 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
