7282-6SG-300

Active

Conxall/Switchcraft

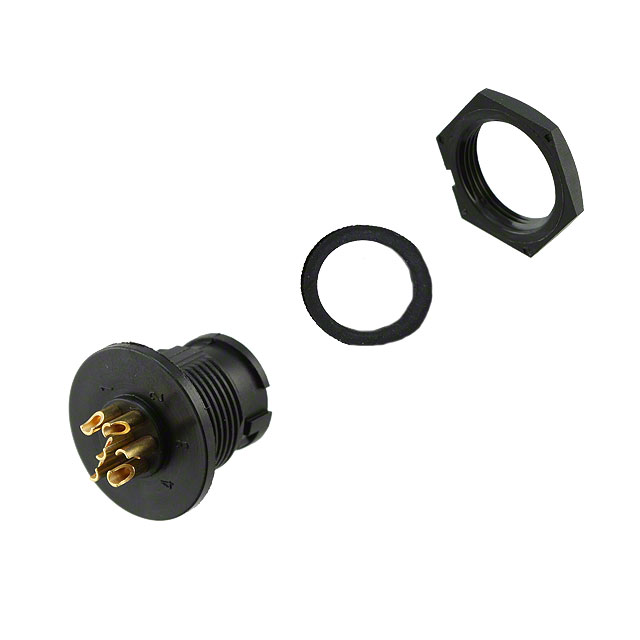

CONN RCPT FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7282-6SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

CONN RCPT FMALE 6P GOLD SLDR CUP

Part	Backshell Material, Plating	Shielding	Connector Type	Orientation	Current Rating (Amps)	Fastening Type	Color	Applications	Mounting Feature	Primary Material	Contact Material	Voltage Rating	Number of Positions	Ingress Protection	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft 7282-6SG-300	Nylon, Polyamide (PA)	Unshielded	Receptacle, Female Sockets	Keyed	Varies by Wire Gauge	Bayonet Lock	Black	Automotive, Communication Systems, Instrumentation	Bulkhead - Front Side Nut	Plastic	Brass	600 V	6	Weathertight	Gold	-40 °C	115 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
