TNPW0201750RBEED

Active

Vishay Dale

RES 750 OHM 0.1% 0.075W 0201

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TNPW0201750RBEED

Active

Vishay Dale

RES 750 OHM 0.1% 0.075W 0201

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TNPW0201750RBEED	TNPW0201 Series

Composition	Thin Film	Thin Film
Features	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max] [z]	0.26 mm	0.26 mm
Height - Seated (Max) [Max] [z]	0.01 "	0.01 "
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 Metric	0603 Metric
Package / Case	0201	0201
Power (Watts)	75 mW	75 mW
Ratings	AEC-Q200	AEC-Q200
Resistance	750 Ohms	1.2 - 2200 kOhms
Size / Dimension [x]	0.6 mm	0.6 mm
Size / Dimension [x]	0.024 "	0.024 "
Size / Dimension [y]	0.3 mm	0.3 mm
Size / Dimension [y]	0.012 "	0.012 "
Supplier Device Package	0201	0201
Temperature Coefficient	25 ppm/°C	25 ppm/°C
Tolerance	0.1 %	0.1 %

TNPW0201 Series

RES 14K OHM 0.1% 0.075W 0201

Part	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations	Package / Case	Package / Case	Power (Watts)	Supplier Device Package	Ratings	Resistance	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features
Vishay Dale TNPW020114K0BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	14 kOhms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW020150R0DEED		155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	50 Ohms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW02014K99BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	4.99 kOhms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW020116K9BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	16.9 kOhms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW020111K0BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	11 kOhms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW02018K25BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	8.25 kOhms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW02015K11BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	5.11 kOhms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW02016K65BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	6.65 kOhms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW02012K20BEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	2200 Ohms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Vishay Dale TNPW0201150RBEED	0.1 %	155 °C	-55 °C	Thin Film	0.26 mm	0.01 "	2	0603 Metric	0201	75 mW	0201	AEC-Q200	150 Ohms	25 ppm/°C	0.3 mm	0.6 mm	0.024 "	0.012 "	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.25
		10	$ 0.18
		50	$ 0.14
		100	$ 0.12
		500	$ 0.09
		1000	$ 0.08
		5000	$ 0.06
	Digi-Reel®	1	$ 0.25
		10	$ 0.18
		50	$ 0.14
		100	$ 0.12
		500	$ 0.09
		1000	$ 0.08
		5000	$ 0.06
	Tape & Reel (TR)	10000	$ 0.07

Description

General part information

TNPW0201 Series

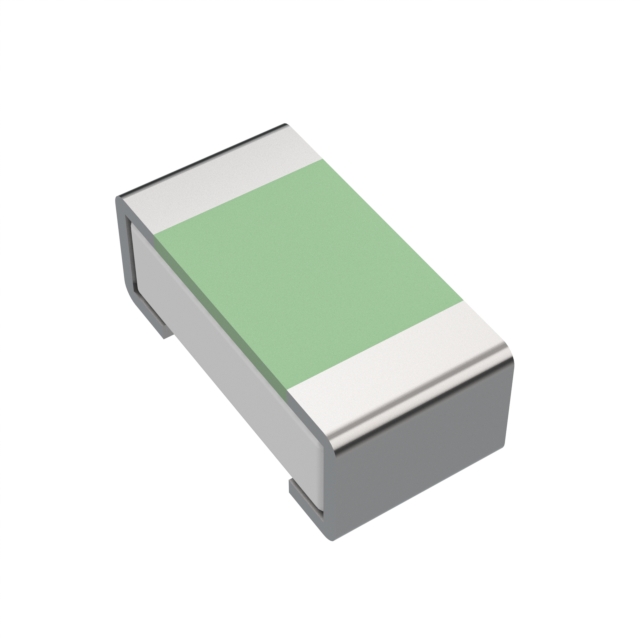

750 Ohms ±0.1% 0.075W Chip Resistor 0201 (0603 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
