Description
General part information

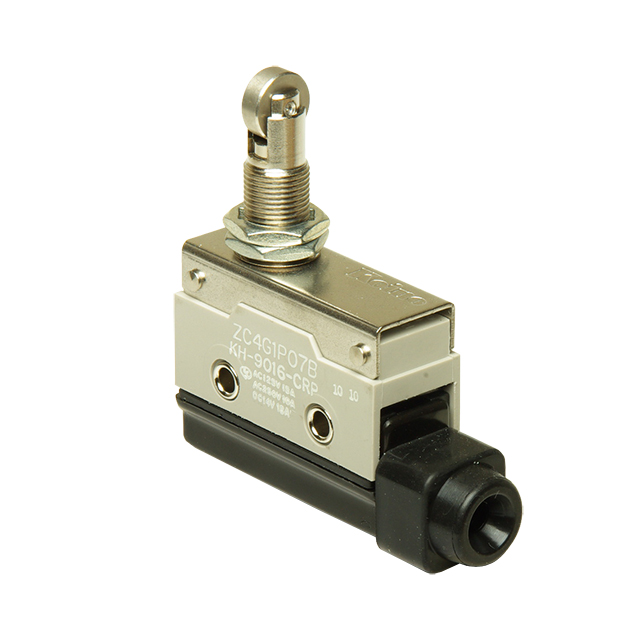

KH-9016-CRP
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KH-9016-CRP |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | SPDT |
| Current Rating | 15 A |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 600 gf |
| Operating Position (Length) | 1.313 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.138 in |
| Pretravel (Length) | 0.04 in |
| Release Force | 100 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
