MFT202
Activeifm efector, inc.

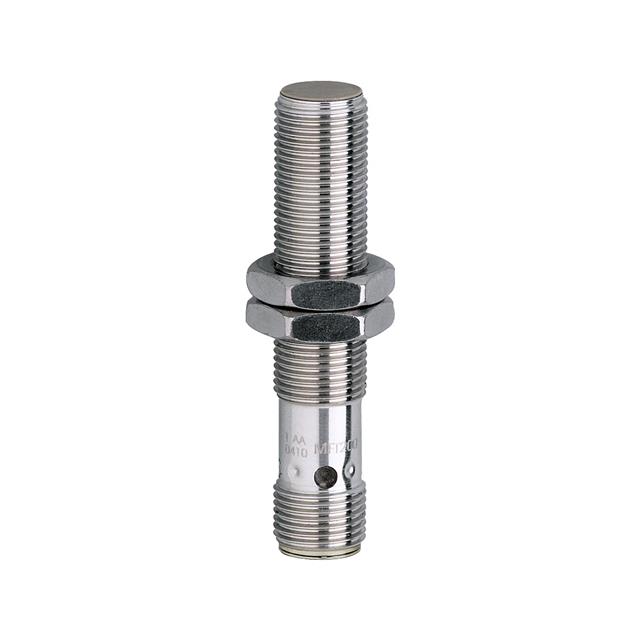

MAGNETIC SENSOR,12MM THREADED TU
MFT202
Activeifm efector, inc.
MAGNETIC SENSOR,12MM THREADED TU
Description
General part information
MFT202
Digital Switch Special Purpose PNP-NO Magnetoresistive
Technical Specifications
Parameters and characteristics for this part
| Specification | MFT202 |
|---|---|
| Current - Output (Max) | 100 mA |
| Current - Supply (Max) | 10 mA |
| Function | Special Purpose |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 100 °C, 125 °C |
| Operating Temperature (Min) | 0 °C, -40 °C |
| Output Type | PNP-NO |
| Package / Case | Threaded - M12, Cylinder |
| Polarization | South Pole |
| Sensing Range | 1.3 mT |
| Technology | Magnetoresistive |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
