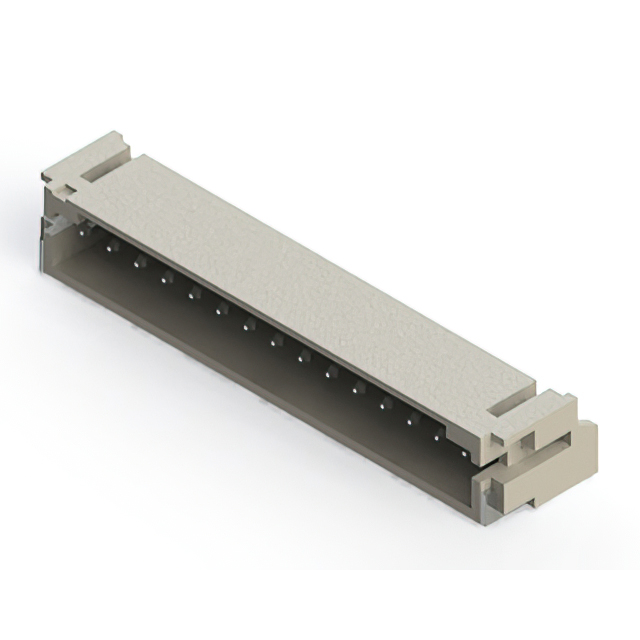

140-515-417-060

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 15 SU

Search across all available documentation for this part.

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 15 SU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-515-417-060	140-515 Series

Color	-	Natural
Connector Type	Header	Receptacle, Header
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Female Socket, Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	Solder Retention	Polarizing Key, Solder Retention
Insulation Color	Natural	Natural
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Insulation Material	Polyamide (PA9T), Nylon 9T	Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Free Hanging (In-Line), Surface Mount, Surface Mount, Right Angle
Note	-	Contacts Not Included
Number of Positions	15	15
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	100 VAC	100 VAC

CONNECTOR HOUSING, 140 SERIES, RECEPTACLE, 15 POSITIONS, 2 MM

Part	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Mounting Type	Number of Positions	Note	Insulation Material	Pitch [x]	Pitch [x]	Features	Connector Type	Number of Rows	Current Rating (Amps)	Shrouding	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Termination	Voltage Rating	Contact Shape	Style	Contact Finish - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]
EDAC Inc. 140-515-210-011	Female Socket	Natural	-25 °C	85 °C	Crimp	Detent Lock	Free Hanging (In-Line)	15	Contacts Not Included	Polyamide (PA66), Nylon 6/6	0.079 in	2 mm	Polarizing Key	Receptacle	1
EDAC Inc. 140-515-417-011	Male Pin		-40 °C	105 ░C		Detent Lock	Surface Mount	15		Liquid Crystal Polymer (LCP)			Solder Retention	Header	1	2 A	Shrouded - 4 Wall	UL94 V-0	All	Natural	Solder	100 VAC	Square	Board to Cable/Wire	Tin	5.51 mm	0.217 in	Brass	0.079 in	2 mm
EDAC Inc. 140-515-417-060	Male Pin		-25 °C	85 °C		Detent Lock	Surface Mount, Right Angle	15		Nylon 9T, Polyamide (PA9T)			Solder Retention	Header	1	2 A	Shrouded - 4 Wall	UL94 V-0	All	Natural	Solder	100 VAC	Square	Board to Cable/Wire	Tin	5.51 mm	0.217 in	Brass	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.60

General part information

Connector Header Surface Mount, Right Angle 15 position 0.079" (2.00mm)
