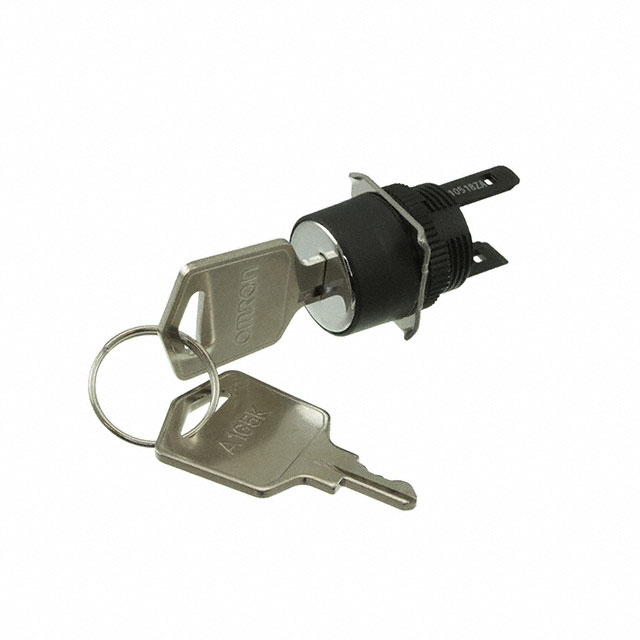

Specification	A165K-T3MA

Actuator Type	Keylock
Compatible Series	Omron, A165K
Illumination	Non-Illuminated
Panel Cutout Dimension	16 mm
Panel Cutout Shape	Round
Requires	Contact Block(s)
Type	Maintained, Momentary

A165 Series

Rotary Switches KNOB-TYPE RND 2POS MOM SELECTOR SWITCH

...

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Switch Function	Color - Actuator/Cap	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Circuit	Panel Cutout Diameter	Panel Cutout Shape	Mounting Type	Voltage Rating - AC	Current Rating	Type	Actuator Marking	Ingress Protection Description	Ingress Protection IP Rating	Termination Style	Removable Positions	Angle of Throw	Features	Number of Positions	Voltage Rating - DC	Quick Connect Size (0.110")	Depth Behind Flange	Illumination Voltage (Nominal)	Illumination	Illumination Type	Color	Approval Agency	Requires	Compatible Series	Panel Cutout Dimension
Omron Automation and Safety A165-TGA-2S	200000 Cycles	100000 Cycles	On-On	Green	-10 °C	55 °C	Button Round	DPDT	16 mm	Circular	Front Panel Mount	125 V	5 A	Standard	No Marking	Dust Tight Oil and Water Resistant	IP66	Screwless Clamp
Omron Automation and Safety A165K-J3ML-2	250000 Cycles	100000 Cycles	On-On-On		-10 °C	55 °C	Flat Key	DPDT	16 mm	Circular	Panel Mount	125 V	3 A 5 A					Quick Connect Solder	Left	45 °	IP65 Oil-Resistant	3	30 V	0.11 in	28.5 mm
Omron Automation and Safety A165W-J2MG-24D-2	250000 Cycles	100000 Cycles	On-On		-10 °C	55 °C		DPDT	16 mm	Circular	Panel Mount	125 V	3 A 5 A	Standard		Dust Tight Oil and Water Resistant	IP65	Quick Connect Solder			Bezel Rectangular	2	30 V	0.11 in	28.5 mm	24 V	Illuminated	LED	Green	CCC cUL TUV UL
Omron Automation and Safety A165W-J3AG							Selector			Round				Momentary													Green				Contact Block(s) Illumination Source	A165W Omron	16 mm
Omron Automation and Safety A165L-AAM-24D-1	2000000 Cycles	100000 Cycles	On-Mom	Blue	-10 °C	55 °C	Button Square	SPDT	16 mm	Circular	Front Panel Mount	125 V	5 A	Illuminated Standard	No Marking	Dust Tight Oil and Water Resistant	IP66	Quick Connect Solder						0.11 in		24 V		LED	Blue
Omron Automation and Safety A165L-AAA-5D-2	200000 Cycles	100000 Cycles	On-On	Blue	-10 °C	55 °C	Button Square	DPDT	16 mm	Circular	Front Panel Mount	125 V	5 A	Illuminated Standard	No Marking	Dust Tight Oil and Water Resistant	IP66	Quick Connect Solder						0.11 in		5 V		LED	Blue
Omron Automation and Safety A165-JAA-2	200000 Cycles	100000 Cycles	On-On	Blue	-10 °C	55 °C	Button Rectangular	DPDT	16 mm	Circular	Front Panel Mount	125 V	5 A	Standard	No Marking	Dust Tight Oil and Water Resistant	IP66	Quick Connect Solder						0.11 in
Omron Automation and Safety A165W-J2AG-24D-2	250000 Cycles	100000 Cycles	On-Mom		-10 °C	55 °C		DPDT	16 mm	Circular	Panel Mount	125 V	3 A 5 A	Standard		Dust Tight Oil and Water Resistant	IP65	Quick Connect Solder			Bezel Rectangular	2	30 V	0.11 in	28.5 mm	24 V	Illuminated	LED	Green	CCC cUL TUV UL
Omron Automation and Safety A165K-A3AM							Keylock			Round				Maintained Momentary													Non-Illuminated				Contact Block(s)	A165K Omron	16 mm
Omron Automation and Safety A165L-AGM-12D-2	2000000 Cycles	100000 Cycles	On-Mom	Green	-10 °C	55 °C	Button Square	DPDT	16 mm	Circular	Front Panel Mount	125 V	5 A	Illuminated Standard	No Marking	Dust Tight Oil and Water Resistant	IP66	Quick Connect Solder						0.11 in		12 V		LED	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

A165K-T3MA | Datasheet
