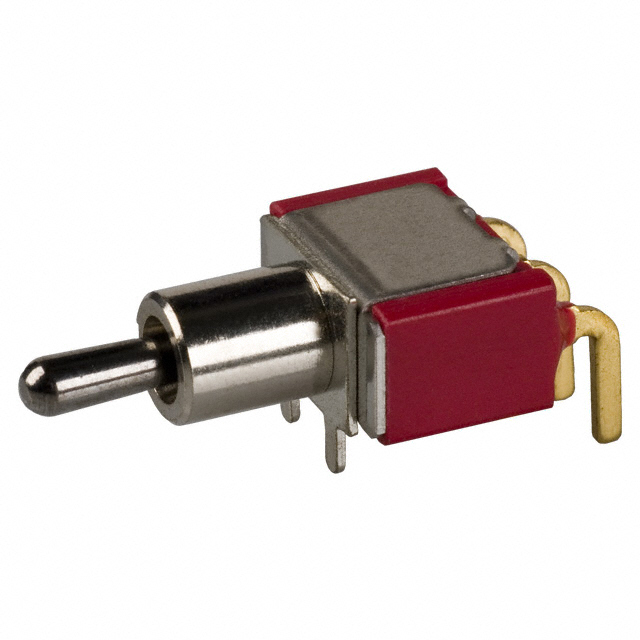

Specification	100SP5T2B4M6RE

Actuator Length	5.08 mm
Actuator Material	Chrome Plated, Brass
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating	0.4 VA
Electrical Life (Cycles)	40000
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

100SP5 Series

Part	Actuator Material	Electrical Life (Cycles)	Voltage Rating - DC	Actuator Length	Switch Function	Circuit	Actuator Type	Bushing Thread	Mounting Type	Features	Voltage Rating - AC	Panel Cutout Diameter	Panel Cutout Shape	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Illumination	Termination Length
E-Switch 1003P1T7B13M2QE	Brass Chrome Plated	40000	28 V	13 mm	On-On	3PDT	Standard Round	15/32-32	Panel Mount	Epoxy Sealed Terminals	120 V	11.91 mm	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T2B4M6QE	Brass Chrome Plated	40000	28 V	5.08 mm	On-On	3PDT	Standard Round	Unthreaded	Right Angle Through Hole	Epoxy Sealed Terminals	120 V			5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B5M7REH	Brass Chrome Plated	40000	20 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	20 V	0.25 "	Circular	0.4 VA	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B1M53QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	Wire Wrap	Non-Illuminated
E-Switch 1003P1T2B2M2RE	Brass Chrome Plated	40000	20 V	5.08 mm	On-On	3PDT	Standard Round	Unthreaded	Through Hole	Epoxy Sealed Terminals	20 V			0.4 VA	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B1M7QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B1M2QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T5B3M2QEH	Brass Chrome Plated	40000	28 V	21.34 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
E-Switch 1003P1T1B3M3QE	Brass Chrome Plated	40000	28 V	10.41 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	Quick Connect	Non-Illuminated	0.062 in
E-Switch 1003P1T2B1M2QE	Brass Chrome Plated	40000	28 V	5.08 mm	On-On	3PDT	Standard Round	1/4-40	Panel Mount	Epoxy Sealed Terminals	120 V	0.25 "	Circular	5 A	85 °C	-30 °C	PC Pin	Non-Illuminated
