PE-65968NL
ActivePulse Electronics
AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS SMD T3/DS3/E3/STS-1 19UH 1-PORT
PE-65968NL
ActivePulse Electronics
AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS SMD T3/DS3/E3/STS-1 19UH 1-PORT
Description
General part information
PE-65968NL

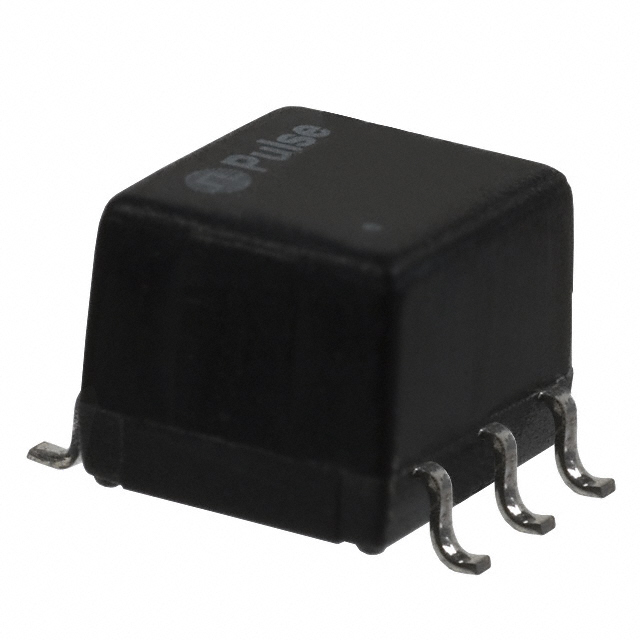

19µH T3/E3 (Single) Pulse Transformer 1:2CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-65968NL |
|---|---|
| Height - Seated (Max) | 0.245 in |
| Inductance | 19 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.3 in |
| Size / Dimension Width | 0.275 " |
| Transformer Type | T3, E3 (Single) |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 2 |
| Weight | 0.14 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
