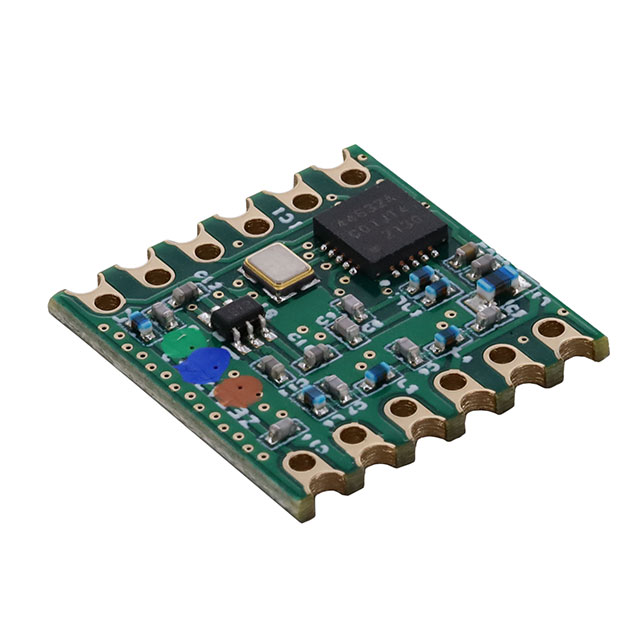

ZETA20-8S
ActiveRF SOLUTIONS
RF TXRX MOD ISM<1GHZTHROUGH HOLE
ZETA20-8S
ActiveRF SOLUTIONS
RF TXRX MOD ISM<1GHZTHROUGH HOLE
Description
General part information
ZETA20-8S
General ISM < 1GHz Transceiver Module 850MHz ~ 870MHz Antenna Not Included Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ZETA20-8S |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 10 mA |
| Current - Transmitting (Max) | 85 mA |
| Current - Transmitting (Min) | 13 mA |
| Data Rate | 1 Mbps |
| Frequency (Max) | 870 MHz |
| Frequency (Min) | 850 MHz |
| Modulation | OOK, GFSK |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 12-DIP Module |
| Power - Output | 20 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -126 dBm |
| Serial Interfaces | SDI, GPIO, SPI |
| Utilized IC / Part | Si4463 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.8 V |
