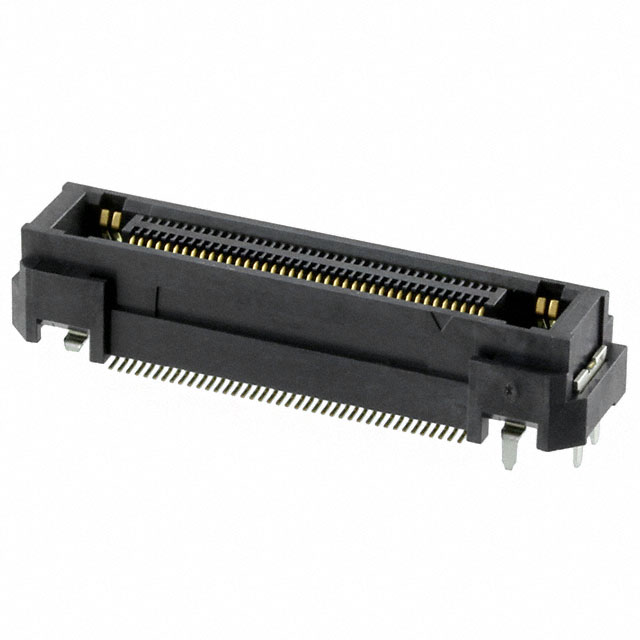

Specification	FX23-80S-0.5SH(20)

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.287 in
Mounting Type	Right Angle, Surface Mount
Number of Positions (Normal)	80
Number of Positions (Power)	4
Number of Positions (Total)	84
Number of Rows	2
Pitch	0.02 in

FX23 Series

Part	Pitch	Features	Height Above Board	Connector Type	Number of Positions	Mounting Type	Contact Finish	Number of Rows	Contact Finish Thickness	Mated Stacking Height Options	Number of Positions (Normal)	Number of Positions (Total)	Number of Positions (Power)
Hirose Electric Co Ltd FX23-100S-0.5SVB	0.02 in	Board Guide	0.268 in	Center Strip Contacts Receptacle	100	Surface Mount	Gold	2
Hirose Electric Co Ltd FX23-120S-0.5SV	0.02 in	Board Guide	0.268 in	Center Strip Contacts Receptacle		Surface Mount	Gold	2	4 µin	15mm 20mm	120	124	4
Hirose Electric Co Ltd FX23-100P-0.5SV15(01)	0.02 in	Board Guide	0.506 in	Header Outer Shroud Contacts		Surface Mount	Gold	2	3.94 µin	15mm 25mm	100	104	4
Hirose Electric Co Ltd FX23-80S-0.5SV10(20)	0.02 in	Board Guide	0.661 in	Center Strip Contacts Receptacle	80	Surface Mount	Gold	2		25mm 30mm
Hirose Electric Co Ltd FX23-20S-0.5SH	0.02 in	Board Guide	0.287 in	Center Strip Contacts Receptacle		Right Angle Surface Mount	Gold	2	4 µin		20	24	4
Hirose Electric Co Ltd FX23-60S-0.5SV(20)	0.02 in	Board Guide	0.268 in	Center Strip Contacts Receptacle	60	Surface Mount	Gold	2		15mm 20mm
Hirose Electric Co Ltd FX23-60P-0.5SV15	0.02 in	Board Guide	0.507 in	Header Outer Shroud Contacts		Surface Mount	Gold	2	4 µin	15mm 20mm	60	64	4
Hirose Electric Co Ltd FX23-20P-0.5SV20	0.02 in	Board Guide	0.703 in	Header Outer Shroud Contacts		Surface Mount	Gold	2	4 µin	20mm 30mm	20	24	4
Hirose Electric Co Ltd FX23-80S-0.5SVB	0.02 in	Board Guide	0.268 in	Center Strip Contacts Receptacle		Surface Mount	Gold	2	3.94 µin	15mm 20mm	80	84	4
Hirose Electric Co Ltd FX23A-80S-0.5SH
