Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GSF1.2002.01 | GSF1.2002 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Mounting Hardware | Mounting Hardware |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder | Fuse Holder |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 30.3 mm | 30.3 mm |
| Panel Cutout Dimensions [y] | 22.3 mm | 22.3 mm |
| Panel Thickness | 0.236 in | 0.079 - 0.236 in |
| Panel Thickness | 6 mm | 2 - 6 mm |
| Panel Thickness | - | 0.059 in |
| Panel Thickness | - | 1.5 mm |
| Panel Thickness | - | 2.5 mm |
| Panel Thickness | - | 0.098 in |
| Termination | Solder | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
GSF1.2002 Series
AC POWER ENTRY MODULES GSF1 PWR ENTRY MODUL 10A
| Part | Accomodates a Fuse | Filter Type | Connector Style | Mounting Type | Panel Thickness | Panel Thickness | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Fuse Holder, Drawer | Connector Type | Approval Agency | Ingress Protection | Termination | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Material Flammability Rating | Panel Thickness [custom] | Panel Thickness [custom] | Panel Thickness [x] | Panel Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. GSF1.2002.01 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 0.236 in | 6 mm | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | 30.3 mm | 22.3 mm | Mounting Hardware | UL94 V-0 | |||||
SCHURTER Inc. GSF1.2002.31 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | Mounting Hardware | UL94 V-0 | 0.059 in | 1.5 mm | |||||||
SCHURTER Inc. GSF1.2002.51 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | Mounting Hardware | UL94 V-0 | 2.5 mm | 0.098 in | |||||||
SCHURTER Inc. GSF1.2002.41 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 0.079 in | 2 mm | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | Mounting Hardware | UL94 V-0 | |||||||
SCHURTER Inc. GSF1.2002.71 | Unfiltered - Commercial | IEC 320-C14 | 250 VAC | 10 A | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GSF1.2002 Series

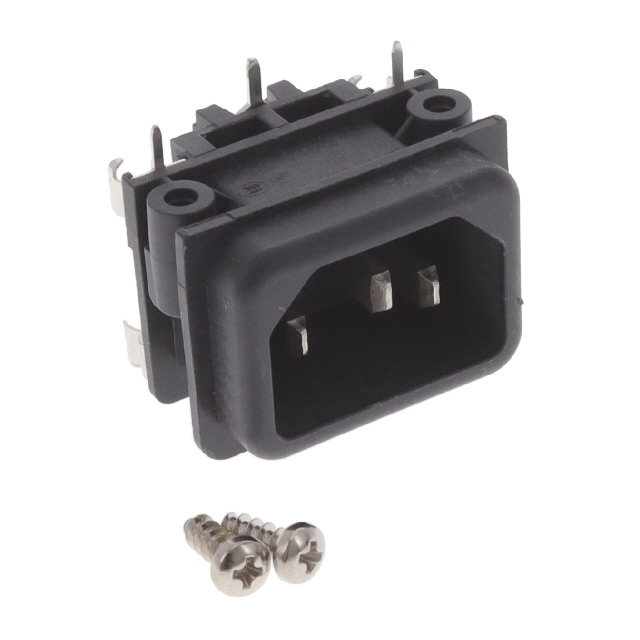

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
