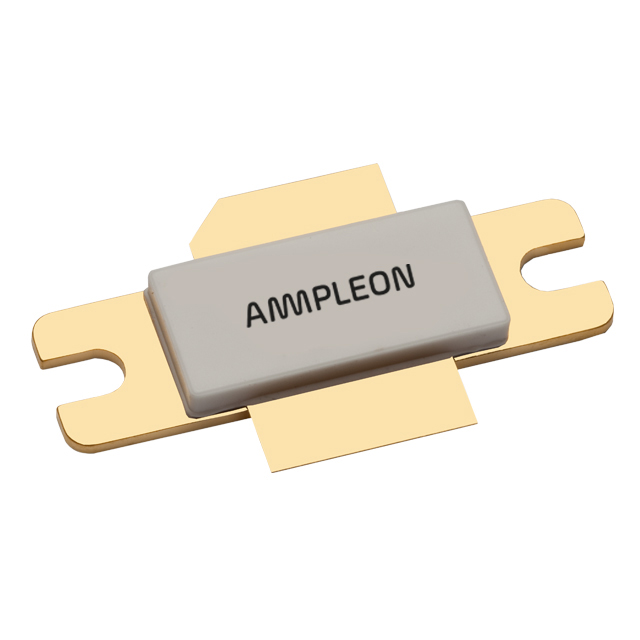

BLA1011-200,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 36V SOT502A

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 36V SOT502A

Technical Specifications

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 36V SOT467C

Part	Current - Test	Voltage - Test	Package / Case	Gain	Mounting Type	Voltage - Rated	Current Rating (Amps)	Supplier Device Package	Power - Output	Frequency [Min]	Frequency [Max]
Ampleon USA Inc. BLA1011-10,112	50 mA	36 V	SOT-467C	15 dB	Chassis Mount	75 V	2.2 A	SOT467C	10 W	1.03 GHz	1.09 GHz
Ampleon USA Inc. BLA1011-300,112	150 mA	32 V	SOT-957A	16.5 dBi	Chassis Mount	65 V	15 A	LDMOST	300 W	1.03 GHz	1.09 GHz
Ampleon USA Inc. BLA1011-200,112	150 mA	36 V	SOT-502A	13 dBi	Chassis Mount	75 V		SOT502A	200 W	1.03 GHz	1.09 GHz
Ampleon USA Inc. BLA1011-2,112	50 mA	36 V	SOT-538A	16 dB	Surface Mount	75 V	2.2 A	2-CSMD	2 W	1.03 GHz	1.09 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 36 V 150 mA 1.03GHz ~ 1.09GHz 13dB 200W SOT502A

Technical documentation and resources
