SM3296

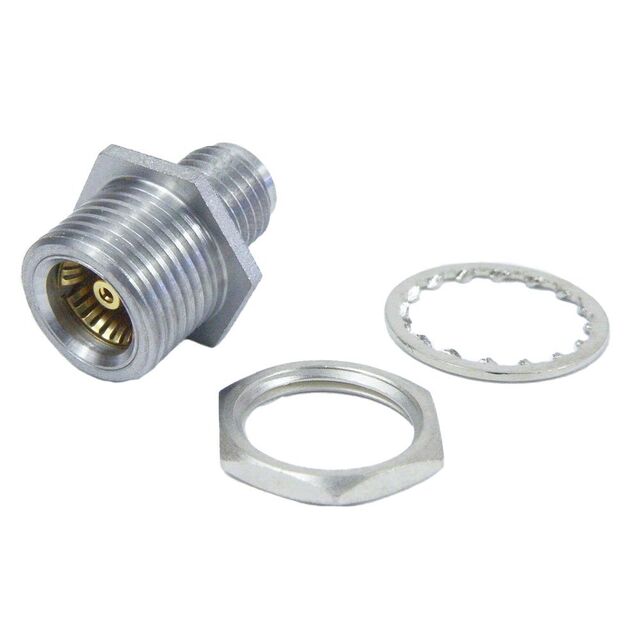

Adapter Coaxial Connector BMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3296 |
|---|---|
| Adapter Series | SMA to BMA |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, BMA Jack |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMA Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
