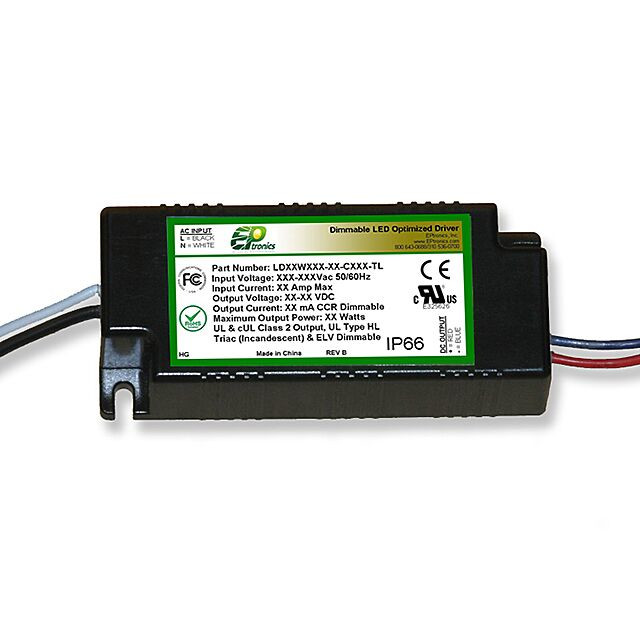

LD16W230-24-C0700-TL

Active

EPtronics, Inc.

14~24V@700MA, PHASE DIMMING

Search across all available documentation for this part.

Active

EPtronics, Inc.

14~24V@700MA, PHASE DIMMING

Technical Specifications

Parameters and characteristics commom to parts in this series

14~24V@700MA, PHASE DIMMING

Part	Efficiency	Current - Output (Max) [Max]	Type	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Weight	Weight	Termination Style	Standard Number	Mounting Type	Voltage - Input (Max) [Max]	Topology	Approval Agency	Voltage - Input (Min) [Min]	Dimming	Number of Outputs	Voltage - Isolation	Ratings	Voltage - Input (Max) [Max] [custom]
EPtronics, Inc. LD16W230-24-C0700-TL	83 %	700 mA	Constant Current	24 V	14 V	-30 ░C	60 °C	16.8 W	OCP, OVP, SCP	3.74 "	24.9 mm	1.61 "	95 mm	40.9 mm	0.98 in	0.368 lb	166.92 g	Wire Leads	C22.2, UL 8750	Chassis Mount	277 VAC	AC DC Converter	CE, cURus, FCC	220 VAC	ELV, TRIAC	1	3750 V	IP66
EPtronics, Inc. LD16W120-46-C0350-TL	85 %	350 mA	Constant Current	46 V	28 V	-30 ░C	60 °C	16.1 W	OCP, OVP, SCP	3.74 "	24.9 mm	1.61 "	95 mm	40.9 mm	0.98 in	0.368 lb	166.92 g	Wire Leads	C22.2, UL 8750	Chassis Mount		AC DC Converter	CE, cURus, FCC	108 VAC	ELV, TRIAC	1	3750 V	IP66	132 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

700mA 14 ~ 24V Constant Current LED Driver AC DC Converter Topology 1 Output
