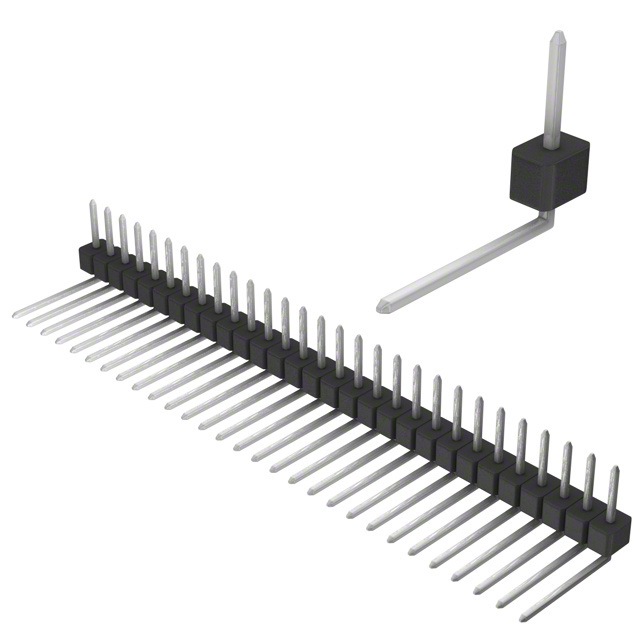

PEC29SBDN

Active

Sullins Connector Solutions

CONN HEADER R/A 29POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC29SBDN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.4 in
Contact Length - Post [x]	10.16 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	29
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC29 Series

Part	Termination	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Contact Shape	Material Flammability Rating	Current Rating (Amps)	Style	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Connector Type	Insulation Material	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Number of Positions Loaded	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PEC29SAHN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.23 in	5.84 mm	125 °C	-65 ░C	1	20.83 mm	0.82 in	Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	29	Breakaway Header	Polybutylene Terephthalate (PBT)	1.15 in	29.21 mm	Tin	All
Sullins Connector Solutions PEC29DACN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.23 in	5.84 mm	125 °C	-65 ░C	2	8.13 mm	0.32 in	Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	58	Breakaway Header	Polybutylene Terephthalate (PBT)		0.65 in	Tin	All	16.51 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC29DGBN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.318 "		125 °C	-65 ░C	2	5.08 mm	0.2 in	Black	Through Hole Right Angle	0.24 in	6.1 mm	2.54 µm	100 µin	2.54 çm	100 çin	58	Breakaway Header	Polybutylene Terephthalate (PBT)			Tin	All		2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PEC29SABN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.23 in	5.84 mm	125 °C	-65 ░C	1			Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	29	Breakaway Header	Polybutylene Terephthalate (PBT)	0.56 in	14.22 mm	Tin	All					0.23 in	5.84 mm
Sullins Connector Solutions PEC29SBDN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.23 in	5.84 mm	125 °C	-65 ░C	1	10.16 mm	0.4 in	Black	Through Hole Right Angle	0.14 in	3.56 mm	2.54 µm	100 µin	2.54 çm	100 çin	29	Breakaway Header	Polybutylene Terephthalate (PBT)			Tin	All
Sullins Connector Solutions PEC29DABN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.23 in	5.84 mm	125 °C	-65 ░C	2			Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	58	Breakaway Header	Polybutylene Terephthalate (PBT)	0.56 in	14.22 mm	Tin	All		2.54 mm	0.1 in		0.23 in	5.84 mm
Sullins Connector Solutions PEC29DFAN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.318 "		125 °C	-65 ░C	2	3.05 mm	0.12 in	Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	58	Breakaway Header	Polybutylene Terephthalate (PBT)	0.538 "	13.67 mm	Tin	All		2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PEC29DAGN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.23 in	5.84 mm	125 °C	-65 ░C	2	18.29 mm	0.72 "	Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	58	Breakaway Header	Polybutylene Terephthalate (PBT)	1.05 in	26.67 mm	Tin	All		2.54 mm	0.1 in
Sullins Connector Solutions PEC29SFCN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.318 "		125 °C	-65 ░C	1	8.13 mm	0.32 in	Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	29	Breakaway Header	Polybutylene Terephthalate (PBT)	0.738 "	18.75 mm	Tin	All				8.08 mm
Sullins Connector Solutions PEC29SFAN	Solder	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Male Pin	Square	UL94 V-0	3 A	Board to Board Cable	Unshrouded	0.318 "		125 °C	-65 ░C	1	3.05 mm	0.12 in	Black	Through Hole	0.1 in	2.54 mm	2.54 µm	100 µin	2.54 çm	100 çin	29	Breakaway Header	Polybutylene Terephthalate (PBT)	0.538 "	13.67 mm	Tin	All				8.08 mm
