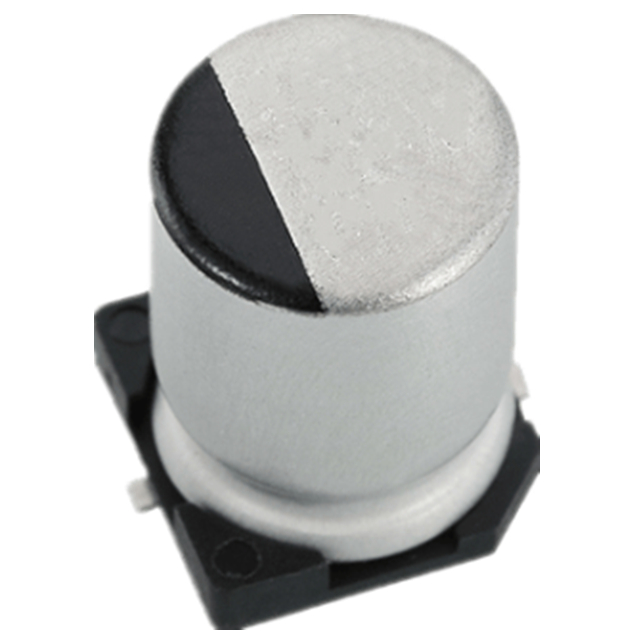

UZ107M050HFKTA
100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 340mOhm 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UZ107M050HFKTA |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 340 mOhm |
| Height - Seated (Max) | 0.433 in |
| Impedance | 0.34 Ohms |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 369 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
