Description
General part information

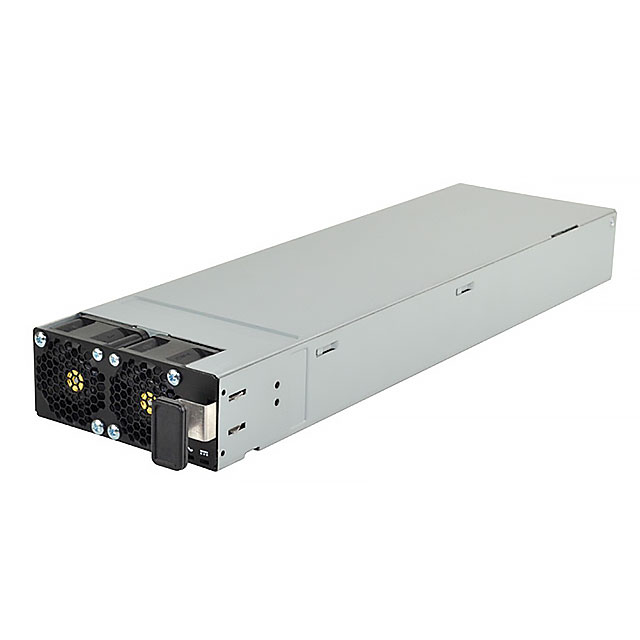

PSE-3000-54-F
Front End AC DC Converters 1 Output 54V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PSE-3000-54-F |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, CB, CE |
| Current - Output 1 | 55.5 A |
| Efficiency | 94 % |
| Features | Remote Sense, 80 Plus® Platinum, Load Sharing, I2C Interface, Hot Swappable, PMBus™, Standby Output, Universal Input, PFC |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 3000 W |
| Size / Dimension Height | 1.6 in |
| Size / Dimension Length | 14 in |
| Size / Dimension Width | 4 in |
| Type | Front End |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 54 V |
