BC-AGS-080806

Active

Boxco

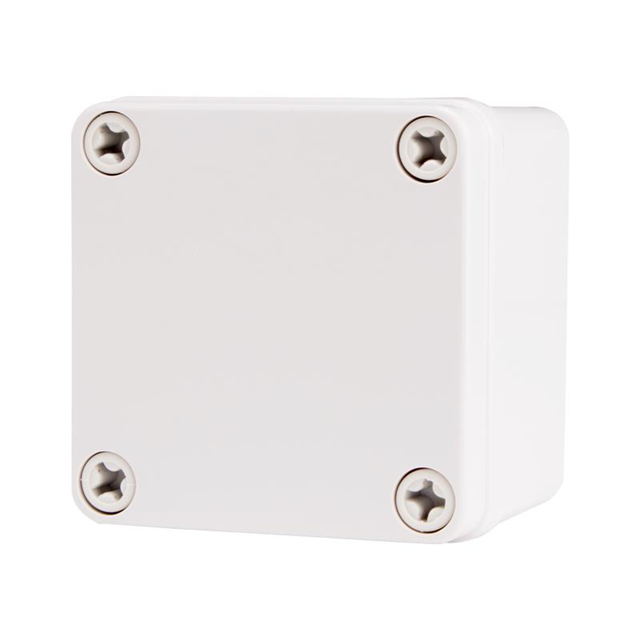

BOX ABS LGT GRY 3.15"L X 3.15"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-AGS-080806

Active

Boxco

BOX ABS LGT GRY 3.15"L X 3.15"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC-AGS-080806	BC-AG Series

Area (L x W)	64 cm˛	64 cm˛
Area (L x W)	9.92 in˛	9.92 - 1575 cm˛
Area (L x W)	-	7.76 - 244 in˛
Area (L x W)	-	140 in˛
Area (L x W)	-	122 - 518 in˛
Area (L x W)	-	784 - 3339 cm˛
Area (L x W)	-	330 in˛
Area (L x W)	-	2128 cm˛
Color	Light Gray	Grayish Blue, Light Gray
Container Type	Box	Junction Box, Box
Design	Lift-Off Screw Cover	Lift-Off Screw Cover, Stainless Steel Latch, Hinged Door
Features	Sealing Gasket, Wall Mount	Sealing Gasket, Latches, Hinged, Lockable, Mounting Brackets, Wall Mount
Height	-	1.693 in
Height	-	43 mm
Height	-	150 mm
Height [z]	2.362 in	2.165 - 10.039 in
Height [z]	60 mm	5.906 - 255 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67	NEMA 4X, NEMA 6, IP66, IP67, UL 508A
Size / Dimension	-	100 - 200 mm
Size / Dimension	-	200 - 250 mm
Size / Dimension [x]	3.15 in	3.15 - 28.74 in
Size / Dimension [x]	80 mm	7.874 - 730 mm
Size / Dimension [y]	80 mm	5.906 - 530 mm
Size / Dimension [y]	3.15 in	2.165 - 20.866 in
Thickness	-	4.5 mm
Thickness	-	0.177 in
Thickness	-	0.146 in
Thickness	-	3.7 mm

BC-AG Series

JUNCT BOX ABS 3.583"L X 2.953"W

Part	Features	Material Flammability Rating	Design	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Material	Height [diameter]	Height [diameter]	Area (L x W)	Area (L x W)	Container Type	Height [z]	Height [z]	Area (L x W) [custom]	Height [z]	Thickness [custom]	Thickness [custom]	Size / Dimension [y]
Boxco BC-ABB-6PT	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.953 in	75 mm	Grayish Blue	Plastic, ABS	1.693 in	43 mm	10.6 in˛	68 cm˛	Junction Box
Boxco BC-AGG-6P	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.953 in	75 mm	Light Gray	Plastic, ABS	1.693 in	43 mm	10.6 in˛	68 cm˛	Junction Box
Boxco BC-AGP-151512	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	5.906 in	150 mm	5.906 "	150 mm	Light Gray	Plastic, ABS			34.9 in˛	225 cm²	Box
Boxco BC-ABB-4P	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.165 in	55 mm	Grayish Blue	Plastic, ABS	1.693 in	43 mm	7.76 in˛	50 cm˛	Junction Box
Boxco BC-AGP-303015	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	11.811 in	300 mm	11.811 "	300 mm	Light Gray	Plastic, ABS				900 cm²	Box	5.906 in	150 mm	140 in˛
Boxco BC-AGP-162113	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	8.268 in	210 mm	6.299 in	160 mm	Light Gray	Plastic, ABS			52.1 in˛	336 cm˛	Box	130 mm			5.118 in
Boxco BC-AGP-507018	Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	28.74 in	730 mm	20.866 in	530 mm	Light Gray	Plastic, ABS					Box	185 mm			7.283 in	4.5 mm	0.177 in
Boxco BC-AGS-102007	Sealing Gasket, Wall Mount	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6, UL 508A	7.874 in	200 mm	3.937 in		Light Gray	Plastic, ABS					Box	70 mm			2.756 "			100 mm
Boxco BC-AGP-112607	Hinged, Latches, Lockable, Sealing Gasket	UL94 HB	Hinged Door, Stainless Steel Latch	IP66, IP67, NEMA 4X, NEMA 6	10.236 inches	260 mm	4.331 in		Light Gray	Plastic, ABS			44.3 in˛	286 cm˛	Box	75 mm			2.953 in			110 mm
Boxco BC-AGG-6PH	Sealing Gasket	UL94 HB	Lift-Off Screw Cover	IP66, IP67, NEMA 4X, NEMA 6	3.583 in	91 mm	2.165 in	55 mm	Light Gray	Plastic, ABS	1.693 in	43 mm	7.76 in˛	50 cm˛	Junction Box

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.55

Description

General part information

BC-AG Series

Box Plastic, ABS Light Gray Lift-Off Screw Cover 3.150" L x 3.150" W (80.00mm x 80.00mm) X 2.362" (60.00mm)
