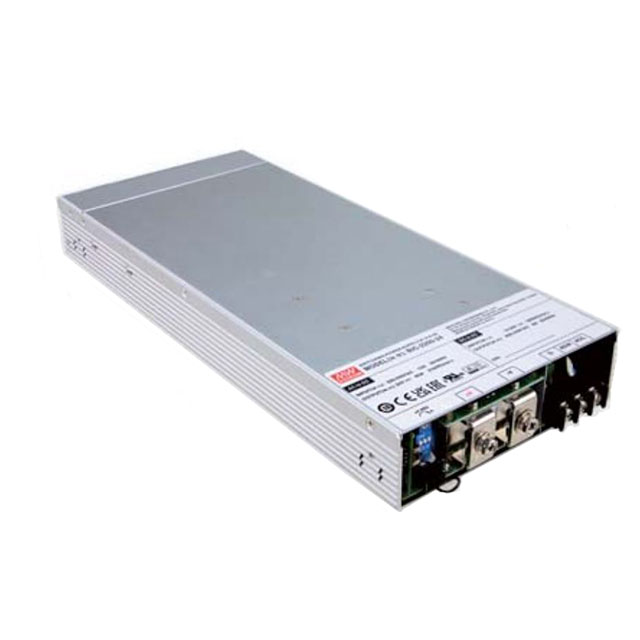

BIC-2200-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 2160W
BIC-2200-12
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 12V 2160W
Description
General part information
BIC-2200-12
Enclosed AC DC Converters 1 Output 12V 180 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BIC-2200-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CB, cURus, EAC, CE, TUV, UKCA |
| Current - Output 1 | 180 A |
| Efficiency | 90 % |
| Features | PFC, Bi-Directional DC Recovery, Remote On/Off, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 2160 W |
| Size / Dimension Height | 1.61 in |
| Size / Dimension Length | 13 in |
| Size / Dimension Width | 5.5 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 180 VAC |
| Voltage - Output 1 | 12 V |
