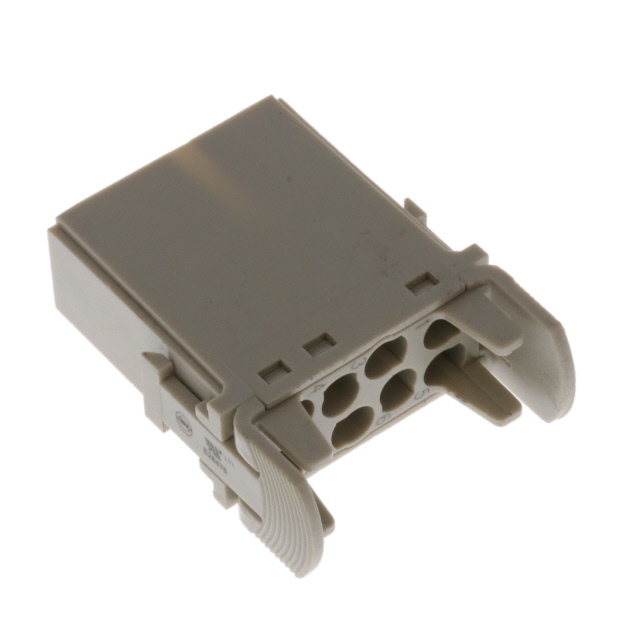

T2111082101-000
ActiveTE Connectivity AMP Connectors
MODULE MALE 8POS HMN-008-M
Deep-Dive with AI
Search across all available documentation for this part.
T2111082101-000
ActiveTE Connectivity AMP Connectors
MODULE MALE 8POS HMN-008-M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T2111082101-000 |
|---|---|
| Connector Type | Module without Contacts |
| Contact Type | CEM, DEM |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.92 | |
| 10 | $ 6.56 | |||
| 25 | $ 6.09 | |||
| 50 | $ 5.75 | |||
| 100 | $ 5.44 | |||
| 250 | $ 5.05 | |||
| 500 | $ 4.77 | |||
| 1000 | $ 4.51 | |||
T2111 Series
MODULE MALE 8POS HMN-008-M
| Part | Voltage Rating | Current Rating (Amps) | Contact Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Gender | Termination Style | Number of Positions | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2111082101-000 | 400 V | 16 A | CEM, DEM | UL94 V-0 | 125 °C | -40 °C | Module without Contacts | Male | Crimp | 8 | Polycarbonate (PC) |
Description
General part information
T2111 Series
Male Module without Contacts 8 Position Crimp
Documents
Technical documentation and resources
