GPH160GF-1-5

Active

3M (TC)

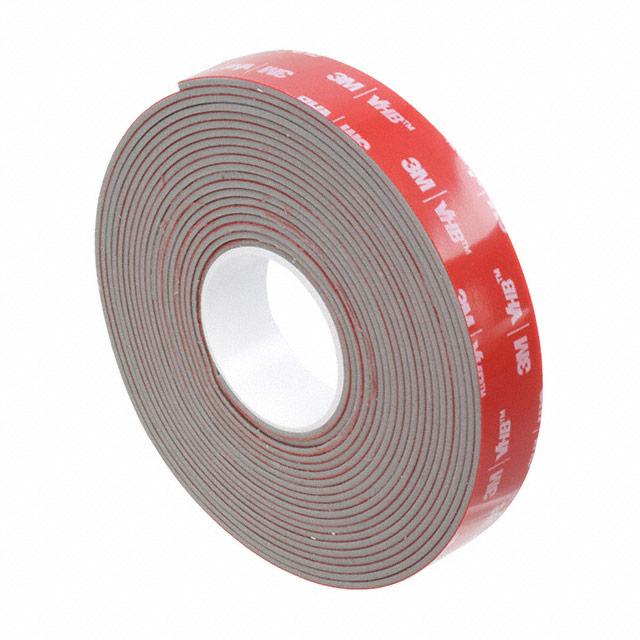

TAPE DBL SIDED GRAY 1"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GPH160GF-1-5

Active

3M (TC)

TAPE DBL SIDED GRAY 1"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GPH160GF-1-5

Adhesive	Acrylic
Backing, Carrier	Acrylic Foam
Color	Gray
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Tape Type	Double Coated, Double Sided
Temperature Range	149 °C
Temperature Range	300 °F
Thickness	1.6 mm
Thickness	0.063 "
Thickness	63 mils
Usage	Bonding
Width [x]	25.4 mm
Width [x]	1 in

GPH-160GF Series

Part	Usage	Backing, Carrier	Color	Thickness	Thickness	Thickness	Width [diameter]	Width	Width	Adhesive	Tape Type	Temperature Range	Temperature Range	Shelf Life	Shelf Life Start	Width [diameter]	Length	Length	Length	Width	Width [x]	Width [x]	Length [x]	Length [x]	Width [y]	Width [y]
3M (TC) 3M GPH-160GF 0.75" CIRCLE-100/PK	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils	0.75 in	19.05 mm	0.75 in	Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment
3M (TC) 3M GPH-160GF 2" CIRCLE-100/PK	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils	2 in			Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment	50.8 mm
3M (TC) GPH160GF-0.5-5	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils		0.5 in	12.7 mm	Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment		4.6 m	15 ft	5 yd	0.5 in
3M (TC) GPH160GF-1-5	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils				Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment		4.6 m	15 ft	5 yd		25.4 mm	1 in
3M (TC) GPH160GFSQ-1(100)	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils				Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment						25.4 mm	1 in	25.4 mm	1 in
3M (TC) 3M GPH-160GF 2" X 5YD	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils				Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment		4.6 m	15 ft	5 yd						2 "	50.8 mm
3M (TC) GPH160GFSQ-12(6)	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils				Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment		304.8 mm	12 "			304.8 mm	12 in
3M (TC) GPH160GF-1-3(100)	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils				Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment		76.2 mm				25.4 mm	1 in		3 in
3M (TC) GPH160GFCIR-1(100)	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils	1 in			Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment	25.4 mm
3M (TC) GPH160GF-0.5-1(100)	Bonding	Acrylic Foam	Gray	1.6 mm	0.063 "	63 mils		0.5 in	12.7 mm	Acrylic	Double Coated Double Sided	149 °C	300 °F	24 Months	Date of Shipment					0.5 in			25.4 mm	1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.14
		10	$ 31.40
		25	$ 29.65
		50	$ 27.91
		100	$ 26.16
		250	$ 24.42

Description

General part information

GPH-160GF Series

Double Coated, Double Sided Tape Acrylic Adhesive Gray 1.00" (25.40mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources
