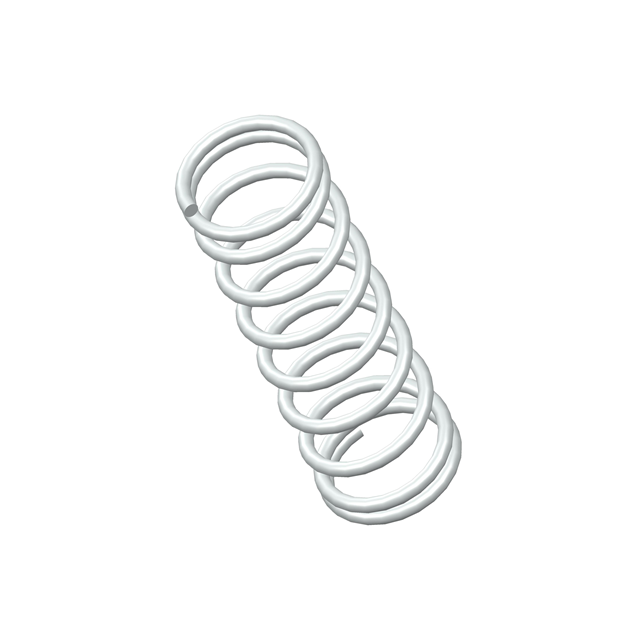

S-732CS
ActiveCentury Spring Corp
COMP O= .312,L= 1.00,W= .032
S-732CS
ActiveCentury Spring Corp
COMP O= .312,L= 1.00,W= .032
Description
General part information
S-732CS
COMP O= .312,L= 1.00,W= .032
Technical Specifications
Parameters and characteristics for this part
| Specification | S-732CS |
|---|---|
| Diameter - Inside | 0.248 in |
| Diameter - Outside | 0.312 in |
| End Style | Closed |
| Finish | None |
| Free Length | 1 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 8.2 lbs/in |
| Type | Compression |
| Wire Diameter | 0.032 in |
