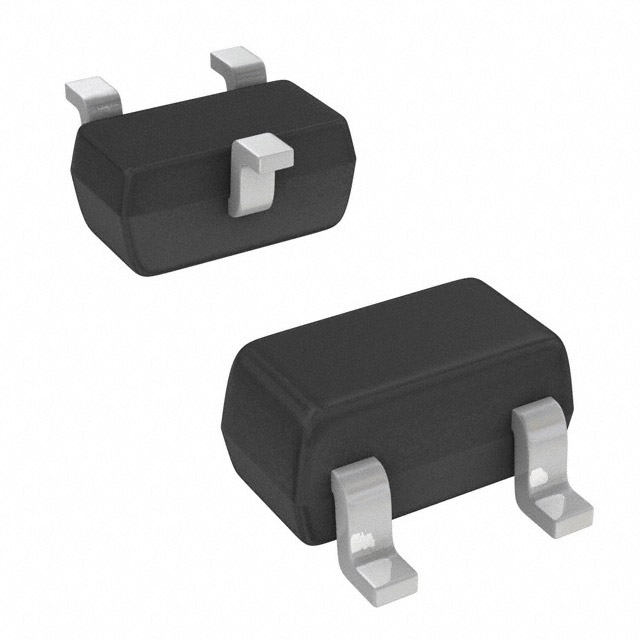

BAS70-06-HF
ActiveComchip Technology
DIODE ARR SCHOT 70V 70MA SOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BAS70-06-HF
ActiveComchip Technology
DIODE ARR SCHOT 70V 70MA SOT23-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BAS70-06-HF | BAS70 Series |
|---|---|---|
| Current - Average Rectified (Io) (per Diode) | 70 mA | 70 mA |
| Current - Reverse Leakage @ Vr | 200 nA | 200 nA |
| Diode Configuration | 1 Pair Common Anode | 1 Pair Common Cathode, 1 Pair Common Anode, 1 Pair Series Connection |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 | SOT-23-3, TO-236-3, SC-59 |
| Reverse Recovery Time (trr) | 5 ns | 5 ns |
| Speed | Any Speed | Any Speed |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | SOT-23-3 | SOT-23-3 |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 70 V | 70 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V | 1 V |
BAS70 Series
DIODE ARR SCHOT 70V 70MA SOT23-3
| Part | Diode Configuration | Mounting Type | Speed | Speed | Current - Reverse Leakage @ Vr | Reverse Recovery Time (trr) | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) (per Diode) | Package / Case | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Technology | Supplier Device Package | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology BAS70-05-HF | 1 Pair Common Cathode | Surface Mount | Any Speed | 200 mA | 200 nA | 5 ns | 1 V | 70 mA | SC-59, SOT-23-3, TO-236-3 | -55 °C | 125 °C | Schottky | SOT-23-3 | 70 V |
Comchip Technology BAS70-06-HF | 1 Pair Common Anode | Surface Mount | Any Speed | 200 mA | 200 nA | 5 ns | 1 V | 70 mA | SC-59, SOT-23-3, TO-236-3 | -55 °C | 125 °C | Schottky | SOT-23-3 | 70 V |
Comchip Technology BAS70-04-HF | 1 Pair Series Connection | Surface Mount | Any Speed | 200 mA | 200 nA | 5 ns | 1 V | 70 mA | SC-59, SOT-23-3, TO-236-3 | -55 °C | 125 °C | Schottky | SOT-23-3 | 70 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.04 | |
| 6000 | $ 0.04 | |||
| 9000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 75000 | $ 0.03 | |||
| 150000 | $ 0.03 | |||
Description
General part information
BAS70 Series
Diode Array 1 Pair Common Anode 70 V 70mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
