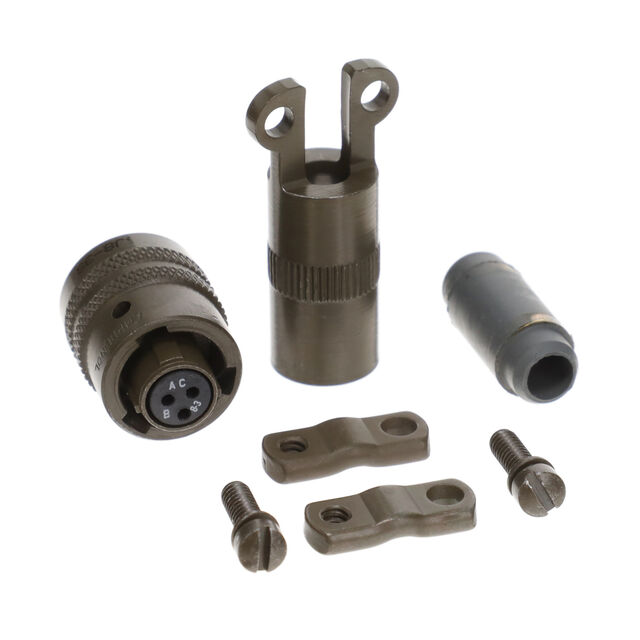

MS3116J8-3S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

MS3116J8-3S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | MS3116J8-3S | MS3116J8 Series |
---|---|---|
Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
Color | Olive Drab | Olive Drab |
Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
Contact Finish - Mating | Gold | Gold |
Contact Material | Copper Alloy | Copper Alloy |
Current Rating (Amps) | 7.5 A | 7.5 A |
Fastening Type | Bayonet Lock | Bayonet Lock |
Features | Backshell, Strain Relief, Cable Clamp | Backshell, Strain Relief, Cable Clamp, Coupling Nut |
Grade | Military | Military |
Ingress Protection | Environment Resistant | Environment Resistant |
Insert Material | Neoprene | Neoprene |
Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
Number of Positions | - | 2 - 4 |
Operating Temperature [Max] | 125 °C | 125 °C |
Operating Temperature [Min] | -55 °C | -55 °C |
Orientation | N | N, X, W |
Primary Material | Metal | Metal |
Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
Shell Material | Aluminum Alloy | Aluminum Alloy, Aluminum |
Shell Size - Insert | 8-3 | 8-3, 8-2, 8-4 |
Shielding | Unshielded | Unshielded |
Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bag | 1 | $ 90.09 | |
10 | $ 82.67 | |||
25 | $ 79.49 | |||
50 | $ 76.84 | |||
100 | $ 72.60 |
MS3116J8 Series
MIL-26482 MS/PT/CMB PLUG
Part | Shell Size - Insert | Shell Finish | Mounting Type | Connector Type | Fastening Type | Qualification | Contact Finish - Mating | Shell Material | Grade | Primary Material | Voltage Rating | Features | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Applications | Shielding | Current Rating (Amps) | Contact Material | Color | Insert Material | Number of Positions | Backshell Material, Plating |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116J8-3S | 8-3 | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Female Sockets, Plug | Bayonet Lock | MIL-DTL-26482 Series I | Gold | Aluminum Alloy | Military | Metal | 600 VAC | Backshell, Cable Clamp, Strain Relief | Environment Resistant | -55 °C | 125 °C | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | 7.5 A | Copper Alloy | Olive Drab | Neoprene | ||
Amphenol Industrial Operations MS3116J8-2PX | 8-2 | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Male Pins, Plug | Bayonet Lock | MIL-DTL-26482 Series I | Gold | Aluminum | Military | Metal | Backshell, Cable Clamp, Coupling Nut | -55 °C | 125 °C | X | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | Copper Alloy | Olive Drab | Neoprene | 2 | Aluminum, Olive Drab Chromate over Cadmium | |||
Amphenol Industrial Operations MS3116J8-4S | 8-4 | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Female Sockets, Plug | Bayonet Lock | MIL-DTL-26482 Series I | Gold | Aluminum Alloy | Military | Metal | 600 VAC | Backshell, Cable Clamp, Strain Relief | Environment Resistant | -55 °C | 125 °C | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | 7.5 A | Copper Alloy | Olive Drab | Neoprene | 4 | |
Amphenol Industrial Operations MS3116J8-4P | 8-4 | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Male Pins, Plug | Bayonet Lock | MIL-DTL-26482 Series I | Gold | Aluminum | Military | Metal | Backshell, Cable Clamp, Coupling Nut | -55 °C | 125 °C | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | Copper Alloy | Olive Drab | Neoprene | 4 | Aluminum, Olive Drab Chromate over Cadmium | |||
Amphenol Industrial Operations MS3116J8-4SW | 8-4 | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Female Sockets, Plug | Bayonet Lock | MIL-DTL-26482 Series I | Gold | Aluminum | Military | Metal | Backshell, Cable Clamp, Coupling Nut | -55 °C | 125 °C | W | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Unshielded | Copper Alloy | Olive Drab | Neoprene | 4 | Aluminum, Olive Drab Chromate over Cadmium |
Description
General part information
MS3116J8 Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
