1401206113KE
ActiveMETZ CONNECT USA Inc.
E-DAT INDUSTRY TERMINAL RAIL TS3
1401206113KE
ActiveMETZ CONNECT USA Inc.
E-DAT INDUSTRY TERMINAL RAIL TS3
Description
General part information
1401206113KE

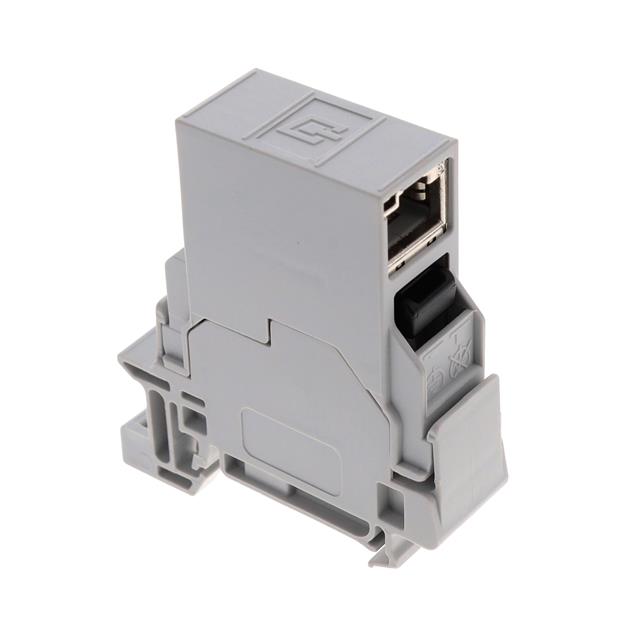

Jack Modular Connector 8p8c (RJ45, Ethernet) 45° Angle Shielded Cat6
Technical Specifications
Parameters and characteristics for this part
| Specification | 1401206113KE |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Housing Material | Zinc Die Cast |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 45 ° |
| Ratings | Cat6 |
| Shielding | Shielded |
| Tab Direction | User Selectable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
