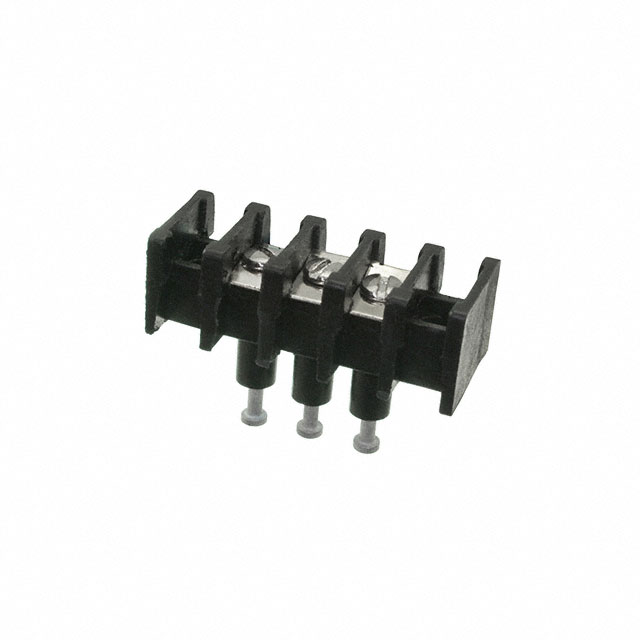

GFTX-3
ActiveCurtis Industries
CONN BARRIER STRIP 3CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GFTX-3 | GFTX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret, Insulated | Solder Turret, Insulated |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 3 | 2 - 23 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 3 | 2 - 17 |
| Number of Wire Entries | - | 22 - 23 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
GFTX Series
CONN BARRIER STRP 12CIRC 0.438"
| Part | Material - Insulation | Bottom Termination | Barrier Type | Terminal Screw Material | Top Termination | Number of Rows | Material Flammability Rating | Number of Wire Entries | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Block Type | Color | Mounting Type | Number of Circuits | Operating Temperature | Current Rating (Amps) | Features | Number of Circuits [custom] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries GFTX-12 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 12 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 12 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-4 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 4 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 4 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-8 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 8 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 110 °C | 20 A | Flange | 8 | ||
Curtis Industries GFTX-3 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 3 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 3 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-14 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 14 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 14 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-22 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 22 | 110 °C | 20 A | Flange | 22 | ||
Curtis Industries GFTX-17 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 17 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 17 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-2 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 2 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 2 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-23 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 23 | 110 °C | 20 A | Flange | 23 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.83 | |
| 10 | $ 5.38 | |||
| 25 | $ 5.12 | |||
| 50 | $ 4.65 | |||
| 100 | $ 4.46 | |||
| 250 | $ 3.94 | |||
| 500 | $ 3.68 | |||
| 1000 | $ 3.41 | |||
Description
General part information
GFTX Series
3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
