1411190

Active

Phoenix Contact

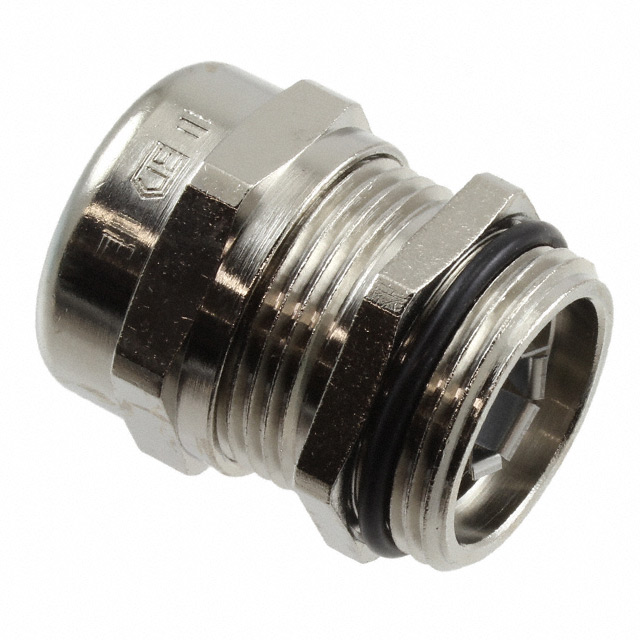

CABLE GLAND 11-16MM M25 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1411190

Active

Phoenix Contact

CABLE GLAND 11-16MM M25 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411190	G-INSEC Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X	IP68 - Dust Tight, Waterproof; NEMA 4X, IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max)	-	9 mm
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.63 "	0.256 - 1.496 in
Outside Cable Diameter (Max) [Max] [diameter]	16 mm	0.354 - 38 mm
Outside Cable Diameter (Min)	-	0.157 - 0.197 in
Outside Cable Diameter (Min)	-	4 - 5 mm
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.433 in	0.118 - 1.181 in
Outside Cable Diameter (Min) [Min] [diameter]	11 mm	3 - 30 mm
Thread Length	7 mm	6 - 12 mm
Thread Length	0.276 in	0.236 - 0.472 in
Thread Size	M25	M32, PG16, M25, PG9, PG13.5, M12, PG42, M16, PG21, PG29
Type	Cable Gland	Cable Gland

G-INSEC Series

CABLE ACCESSORIES CABLE GLAND NICKEL PLATED BRASS SILVER NICKEL

Part	Thread Length	Thread Length	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Includes	Ingress Protection	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max)
Phoenix Contact 1411191	8 mm	0.315 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof; NEMA 4X	Brass, Nickel Plated	14 mm	0.551 in	21 mm	0.827 in	M32
Phoenix Contact 1411199	6.5 mm	0.256 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	10 mm	0.394 in			PG16	14 mm	0.551 "
Phoenix Contact 1411190	7 mm	0.276 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof; NEMA 4X	Brass, Nickel Plated	11 mm	0.433 in	16 mm	0.63 "	M25
Phoenix Contact 1411196	6 mm	0.236 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated			8 mm	0.315 in	PG9			0.157 in	4 mm
Phoenix Contact 1411198	6.5 mm	0.256 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	6 mm	0.236 in	12 mm	0.472 in	PG13.5
Phoenix Contact 1411187	6 mm	0.236 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof; NEMA 4X	Brass, Nickel Plated	3 mm	0.118 in	6.5 mm	0.256 "	M12
Phoenix Contact 1411203	12 mm	0.472 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	30 mm	1.181 in	38 mm	1.496 in	PG42
Phoenix Contact 1411188			Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated			0.354 in		M16			0.197 in	5 mm	9 mm
Phoenix Contact 1411200	7.2 mm	0.283 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated		0.512 in	18.01 mm	0.709 in	PG21						13 mm
Phoenix Contact 1411201	8 mm	0.315 in	Silver	100 °C	-40 °C	Cable Gland	O-Ring, Seal	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	18.01 mm	0.709 in		0.984 in	PG29							25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.32
		10	$ 11.34
		50	$ 10.47
		100	$ 9.98
		250	$ 9.93

Description

General part information

G-INSEC Series

Cable Gland Brass, Nickel Plated M25 Silver
