Description
General part information
DTN-G103H3H-DGS102H

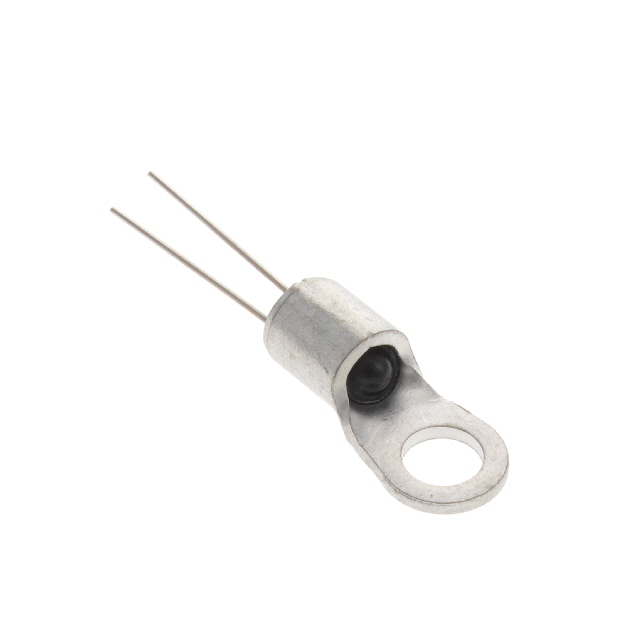

NTC Thermistor 10k Ring Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | DTN-G103H3H-DGS102H |
|---|---|
| B Value (25/85) | 3502 K |
| B Value Tolerance | 3 % |
| B25/50 | 3465 K |
| Length - Lead Wire | 0.591 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Ring Lug |
| Power - Max | 350 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 3 % |
