Description
General part information

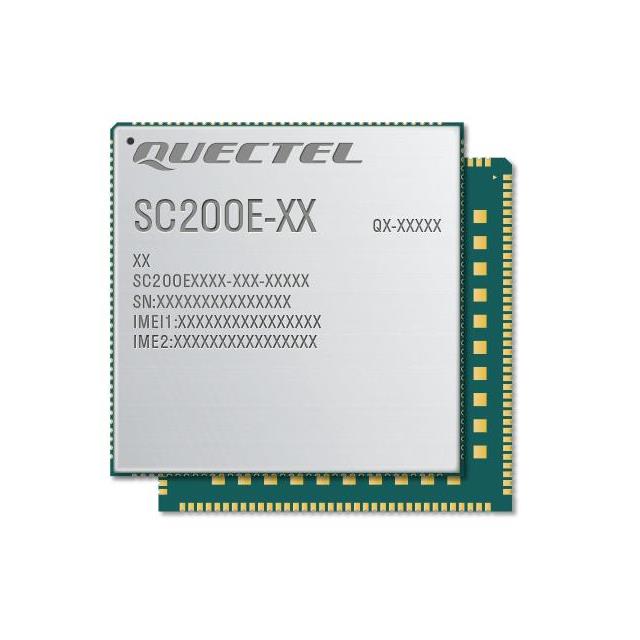

SC206ENANA-E55-UGNDA
Bluetooth, Cellular, Navigation BeiDou, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.2, Bluetooth v5.0, CDMA, EDGE, Galileo, GLONASS, GPRS, GPS, LTE Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SC206ENANA-E55-UGNDA |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 42 Mbps |
| Frequency | 2.4 GHz, 5 GHz |
| Frequency | 2.4GHz, 5GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Package / Case | 274-SMD Module |
| Protocol | GLONASS, GPRS, EDGE, BeiDou, Bluetooth v2.1 + EDR, Galileo, Bluetooth v3.0, GPS, Bluetooth v4.2, CDMA, Bluetooth v5.0, LTE |
| RF Family/Standard | Cellular, Navigation, Bluetooth |
| Serial Interfaces | I2C, SDIO, SPI, ADC, UART, GPIO, USB, PWM |
| Voltage - Supply (Maximum) | 4.4 V |
| Voltage - Supply (Minimum) | 3.55 V |
