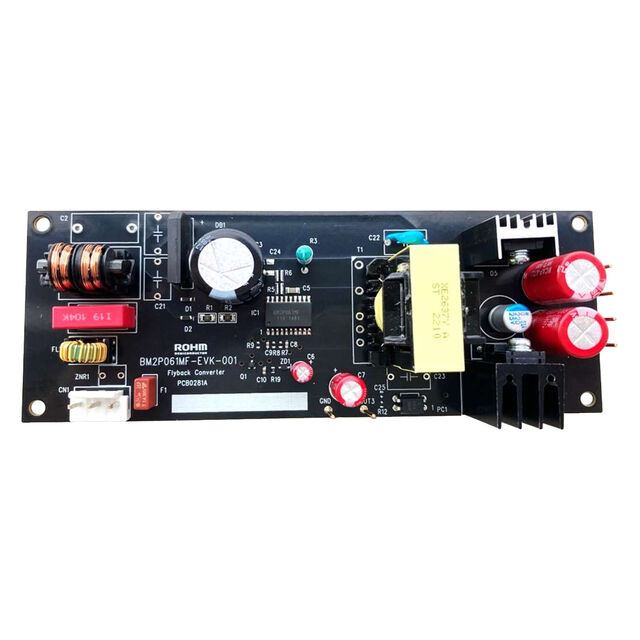

BM2P061MF-EVK-001
ActiveRohm Semiconductor
EVALUATION BOARD, FLYBACK CONVERTER ROHS COMPLIANT: YES
BM2P061MF-EVK-001
ActiveRohm Semiconductor
EVALUATION BOARD, FLYBACK CONVERTER ROHS COMPLIANT: YES
Description
General part information
BM2P061MF-EVK-001
BM2P061 - AC/DC, Primary Side 2, Isolated; 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | BM2P061MF-EVK-001 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output (Value 1) | 2 A |
| Current - Output (Value 2) | 1 A |
| Current - Output (Value 3) | 100 mA |
| Frequency - Switching | 65 kHz |
| Isolated Output Count | 2 count |
| Main Purpose | Primary Side, AC/DC |
| Non-Isolated Output Count | 1 count |
| Output Type | Isolated, Non-Isolated |
| Power - Output | 24 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 3 |
| Utilized IC / Part | BM2P061 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 18.7 V, 5 VDC, 12 V |
