Description
General part information

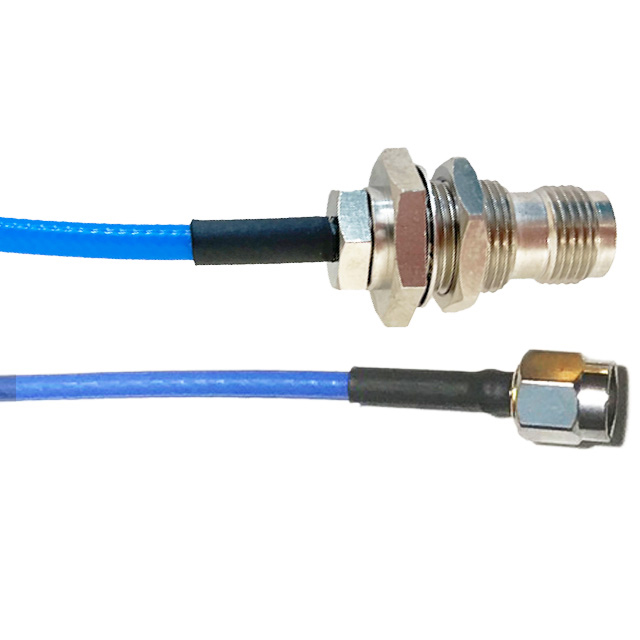

LSA29-T3S1-S60
Cable Assembly Coaxial SMA to TNC Hand Formable .141 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LSA29-T3S1-S60 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
