General part information
2005020252

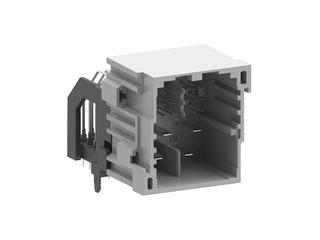

Connector Header Through Hole, Right Angle 25 position
Technical Specifications
Parameters and characteristics for this part
| Specification | 2005020252 |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.102 in |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height | 1.063 in |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 25 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 14 VDC |
