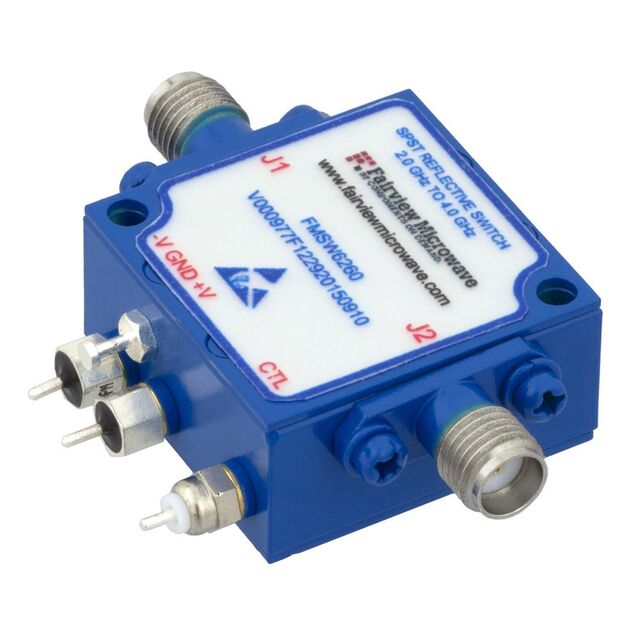

FMSW6260
ObsoleteFairview Microwave
PIN DIODE SWITCH SMA SPST 4GHZ
FMSW6260
ObsoleteFairview Microwave
PIN DIODE SWITCH SMA SPST 4GHZ
Description
General part information
FMSW6260
RF Switch IC General Purpose SPST 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6260 |
|---|---|
| Circuit | SPST |
| Frequency Range (Max) | 4 GHz |
| Frequency Range (Min) | 2 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.85 dB |
| Isolation (Min) | 75 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| RF Type | General Purpose |
| Test Frequency | 4 GHz |
| Topology | Reflective |
| Voltage - Supply | 5 VDC, -15 V |
| Voltage - Supply | 5V, -15V |
