B41458B9478M000
ObsoleteEPCOS - TDK Electronics

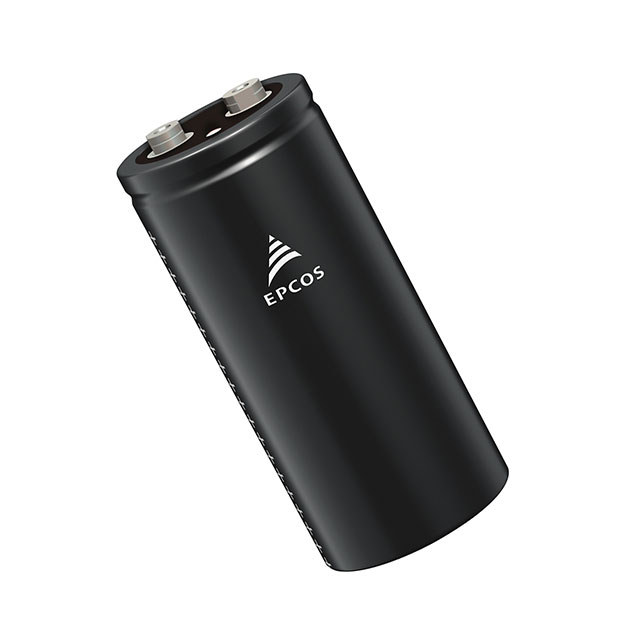

CAP ALUM 4700UF 20% 100V SCREW
B41458B9478M000
ObsoleteEPCOS - TDK Electronics
CAP ALUM 4700UF 20% 100V SCREW
Description
General part information
B41458B9478M000
4700 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 40mOhm @ 100Hz 12000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B41458B9478M000 |
|---|---|
| Applications | General Purpose |
| Capacitance | 4700 µF |
| ESR (Equivalent Series Resistance) | 40 mOhm |
| Height - Seated (Max) | 3.217 in |
| Impedance | 35 mOhms |
| Lead Spacing | 0.5 in |
| Lifetime | 12000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 6.7 A |
| Size / Dimension Diameter | 1.406 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
