UFS370JE3/TR13
ActiveMicrochip Technology
ULTRA FAST RECOVERY RECTIFIER 2-PIN 3.0A, 700V, IFSM=100A, MAX TRR=60NS, VF=1.20V DO-215AB T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UFS370JE3/TR13
ActiveMicrochip Technology
ULTRA FAST RECOVERY RECTIFIER 2-PIN 3.0A, 700V, IFSM=100A, MAX TRR=60NS, VF=1.20V DO-215AB T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UFS370JE3/TR13 | UFS370 Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 3 A | 3 A |
| Current - Reverse Leakage @ Vr | 10 µA | 10 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C | -55 C |

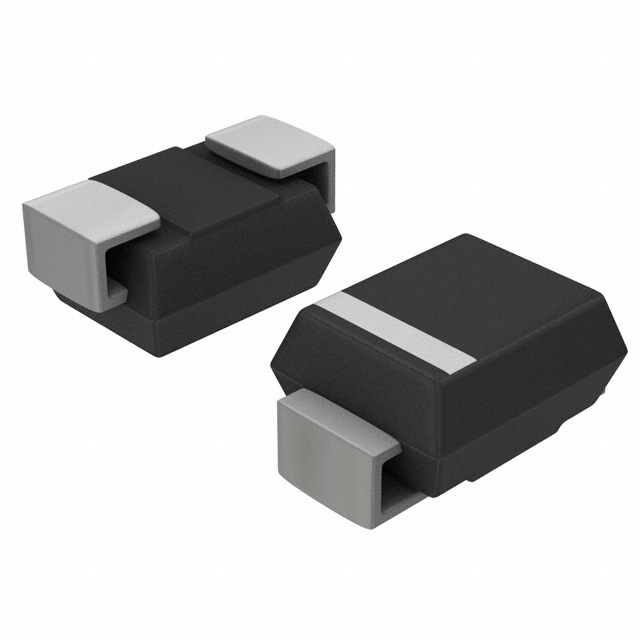

| Package / Case | SMC, DO-214AB | SMC Gull Wing, DO-215AB, SMC, DO-214AB |
| Reverse Recovery Time (trr) | 60 ns | 60 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | DO-214AB | DO-215AB, DO-214AB |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 700 V | 700 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 1.13 | |
| Microchip Direct | N/A | 1 | $ 1.23 | |
| 100 | $ 1.13 | |||
| 500 | $ 1.09 | |||
| 1000 | $ 1.02 | |||
UFS370 Series
Ultra Fast Recovery Rectifier 2-Pin 3.0A, 700V, IFSM=100A, Max trr=60ns, VF=1.20V DO-215AB T/R
| Part | Current - Reverse Leakage @ Vr | Technology | Supplier Device Package | Reverse Recovery Time (trr) | Package / Case | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Speed | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Average Rectified (Io) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UFS370G/TR13 | 10 µA | Standard | DO-215AB | 60 ns | DO-215AB, SMC Gull Wing | 1.2 V | Surface Mount | 175 ░C | -55 C | 200 mA, 500 ns | 700 V | 3 A |
Microchip Technology UFS370JE3/TR13 | 10 µA | Standard | DO-214AB | 60 ns | DO-214AB, SMC | 1.2 V | Surface Mount | 175 ░C | -55 C | 200 mA, 500 ns | 700 V | 3 A |
Microchip Technology UFS370J/TR13 | 10 µA | Standard | DO-214AB | 60 ns | DO-214AB, SMC | 1.2 V | Surface Mount | 175 ░C | -55 C | 200 mA, 500 ns | 700 V | 3 A |
Microchip Technology UFS370G/TR13 | ||||||||||||
Microchip Technology UFS370GE3/TR13 | 10 µA | Standard | DO-215AB | 60 ns | DO-215AB, SMC Gull Wing | 1.2 V | Surface Mount | 175 ░C | -55 C | 200 mA, 500 ns | 700 V | 3 A |
Description
General part information
UFS370 Series
Ultra Fast Recovery. Schottky Barrier Rectifier
