DML3009LDC-7
ActiveDiodes Inc
SINGLE CHANNEL SMART LOAD SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
DML3009LDC-7
ActiveDiodes Inc
SINGLE CHANNEL SMART LOAD SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DML3009LDC-7 |
|---|---|
| Current - Output (Max) [Max] | 20 A |
| Fault Protection | Thermal Shutdown, UVLO, Short-Circuit |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |

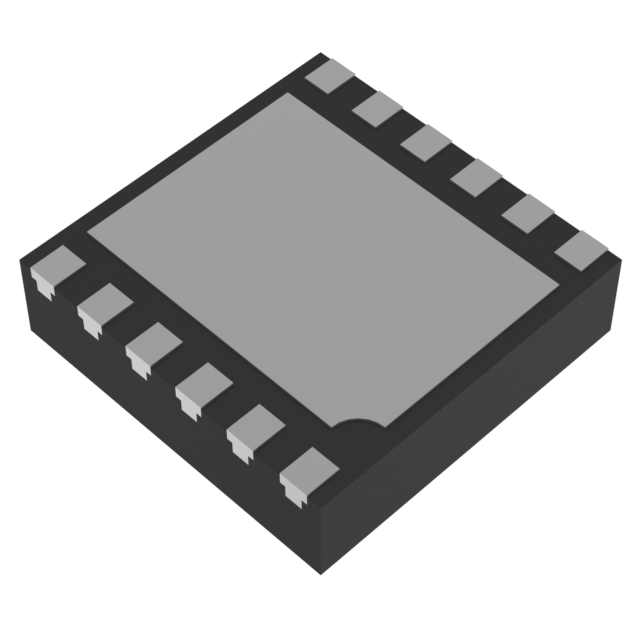

| Package / Case | 12-VFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 6.1 mOhm |
| Supplier Device Package | V-DFN3030-12 (Type B) |
| Switch Type | General Purpose |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.75 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 2.75 | ||
| 10 | $ 1.74 | |||
| 25 | $ 1.47 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.03 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.86 | |||
| Tape & Reel (TR) | 3000 | $ 0.77 | ||
Description
General part information
DML3009LDC Series
The DML3009LDC is a single channel load switch with very low onresistance in a small package. It contains an N-Channel MOSFET for up to 13.5V input voltage operation and 20A current channel. The load switch is controlled by a low voltage control signal through the ON Pin.
