CBG-IPXLK-SARFGT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY MHF1 LK-RPSMA JK-PL 10"
CBG-IPXLK-SARFGT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY MHF1 LK-RPSMA JK-PL 10"
Description
General part information
CBG-IPXLK-SARFGT-10IN

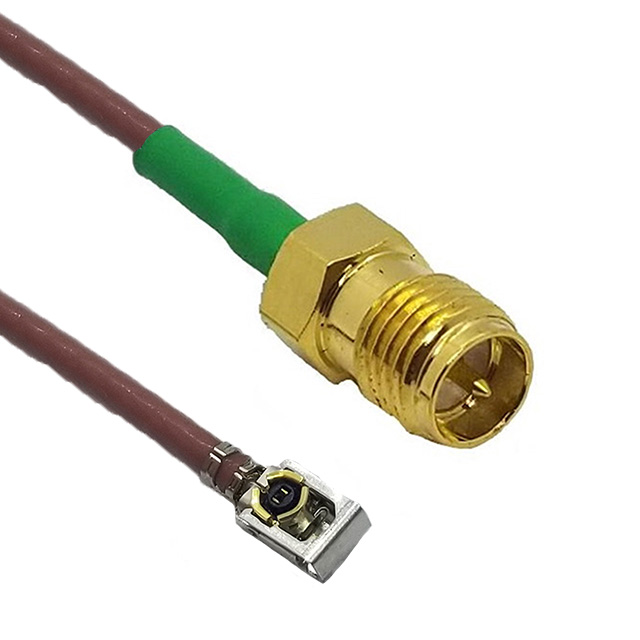

Cable Assembly Coaxial I-PEX MHF1 LK to RP-SMA RG-178 10.000" (254.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBG-IPXLK-SARFGT-10IN |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, I-PEX MHF1 LK (Locking) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 178, RG |
| Color | Brown |
| Features | Locking |
| Frequency - Max | 3 GHz |
| Length | 10 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 LK to RP-SMA |
