Description
General part information

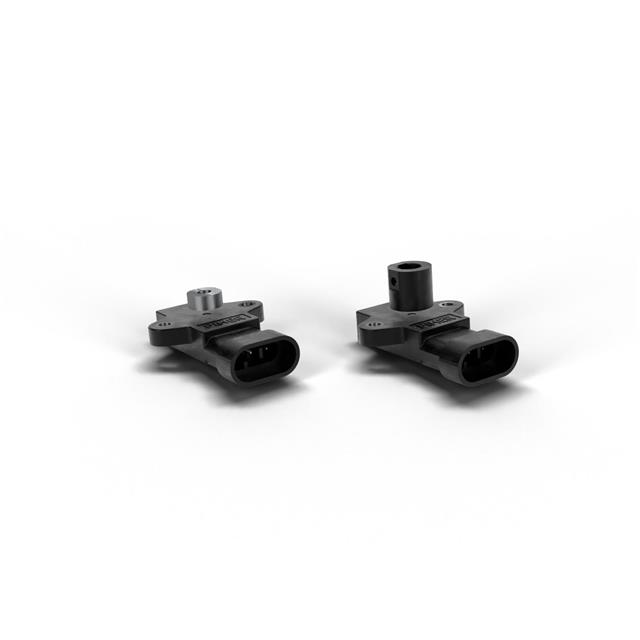

HRPM-A-120S-RE-A
Hall Effect Sensor Rotary Position External Magnet, Not Included Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | HRPM-A-120S-RE-A |
|---|---|
| Actuator Type | External Magnet, Included, Not Included |
| For Measuring | Rotary Position |
| Linearity Tolerance | 1 % |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package / Case | Box with Connector |
| Rotation Angle - Electrical, Mechanical (Maximum) | 120 ° |
| Rotation Angle - Electrical, Mechanical (Minimum) | 0 ° |
| Technology | Hall Effect |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 7 V |
