B65531D0040A001
ActiveEPCOS - TDK Electronics
FERRITE CORE P 40NH K1 2PCS
B65531D0040A001
ActiveEPCOS - TDK Electronics
FERRITE CORE P 40NH K1 2PCS
Description
General part information
B65531D0040A001

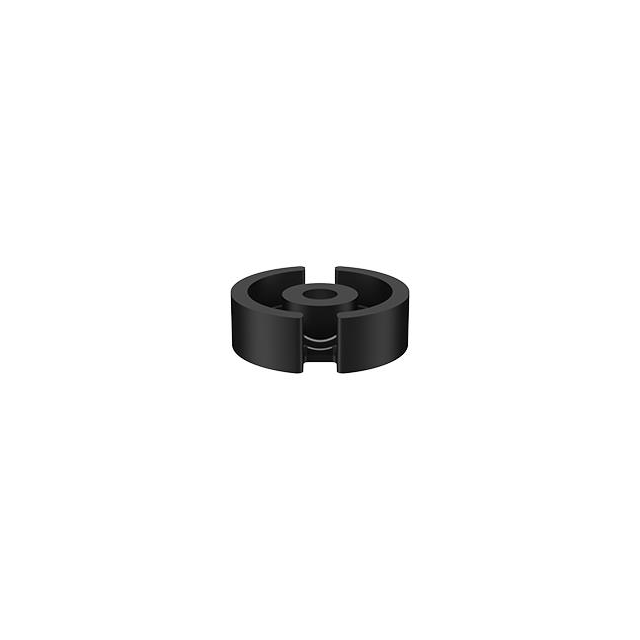

Uncoated K1 Ferrite Core P (Pot Core) Type Length Width 0.445" (11.30mm) Diameter 0.130" (3.30mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65531D0040A001 |
|---|---|
| Core Factor (ΣI/A) | 1 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 1 mm⁻¹ |
| Core Type | P (Pot Core) |
| Diameter | 0.445 in |
| Effective Area (Ae) | 15.9 mm² |
| Effective Length (le) | 15.9 mm |
| Effective Magnetic Volume (Ve) | 253 mm³ |
| Effective Permeability (µe) | 32 |
| Finish | Uncoated |
| Gap | Gapped |
| Height | 0.13 in |
| Inductance Factor (Al) | 40 nH |
| Initial Permeability (µi) | 80 |
| Material | K1 |
| Package Length | 11 mm |
| Package Name | P |
| Package Width | 7 mm |
| Tolerance | 3 % |
