PG2450
Activeifm efector, inc.
SENSOR 5802PSI 1/2" .02A
PG2450
Activeifm efector, inc.
SENSOR 5802PSI 1/2" .02A
Description
General part information
PG2450

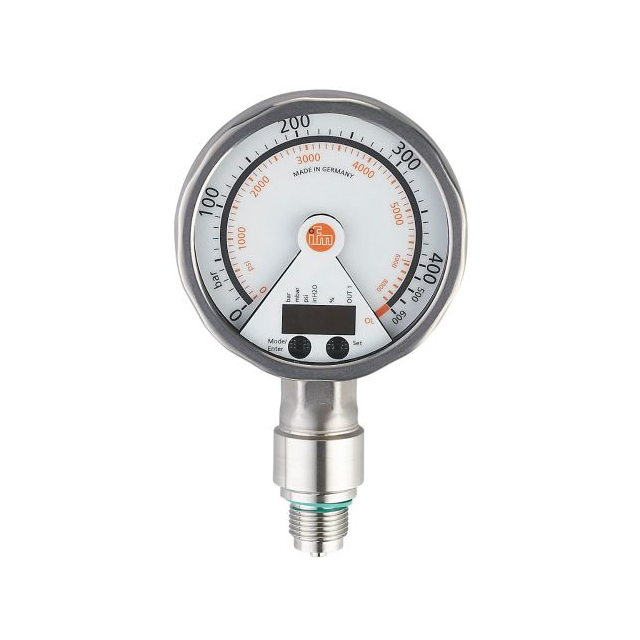

Pressure Sensor 5801.51PSI (40000kPa) Male - 1/2" (12.7mm) BSPP 4 mA ~ 20 mA Module Box with Display
Technical Specifications
Parameters and characteristics for this part
| Specification | PG2450 |
|---|---|
| Accuracy | 0.6 % |
| Maximum Pressure | 17400 PSI |
| Operating Pressure | 5801.51 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | NPN, NO, Analog Current, PNP- NC |
| Package / Case | Module Box with Display |
| Pin Count | 4 |
| Port Diameter | 0.5 in |
| Port Feature | BSPP |
| Port Gender | Male |
| Port Style | Threaded |
| Termination Style | M12 |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 18 VAC |
