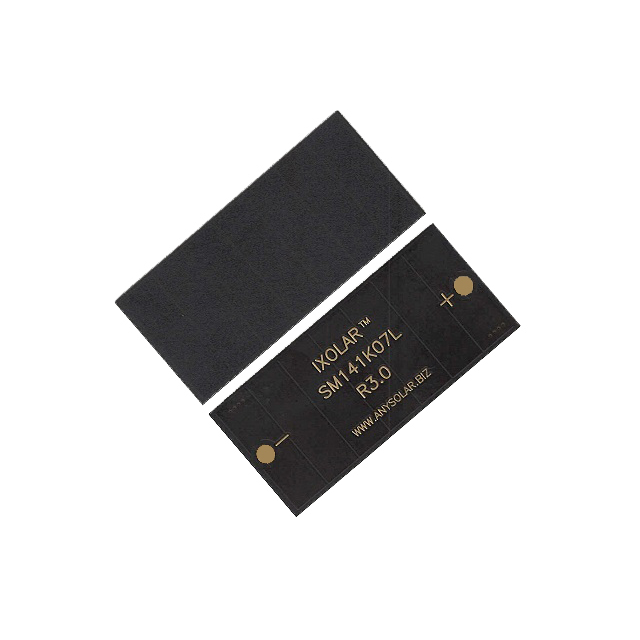

SM141K07L

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 215MW 4.84V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 215MW 4.84V

Technical Specifications

Parameters and characteristics for this part

MONOCRYST SOLAR CELL 215MW 4.84V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage @ Pmpp [custom]	Current - Short Circuit (Isc)	Voltage - Open Circuit	Type	Current @ Pmpp	Power (Watts) - Max [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
ANYSOLAR Ltd SM141K07L	90 °C	-40 °C	3.91 V	58.6 mA	4.84 V	Monocrystalline	55.1 mA	215 mW	Cells	2.1 mm	1.969 in	23 mm	0.083 in	50 mm	0.906 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 215 mW 4.84 V

Technical documentation and resources

No documents available
