TA4FSHF

Active

Switchcraft Inc.

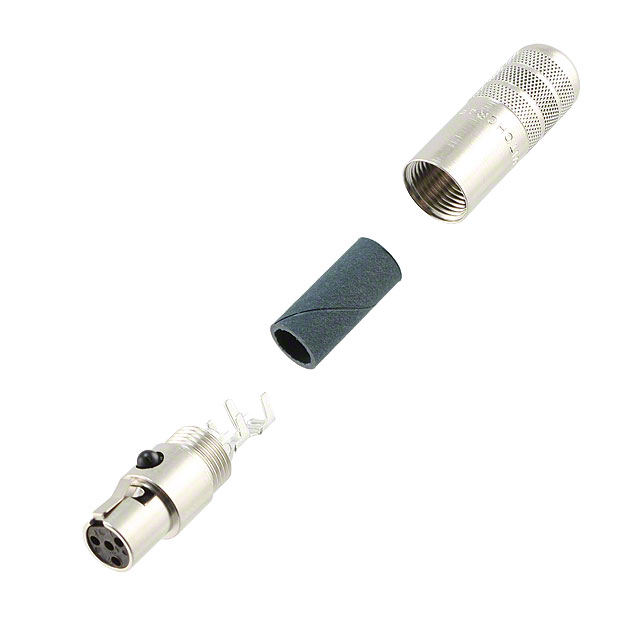

CONN PLUG FMALE MINI XLR 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 4P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA4FSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Termination	Solder
Voltage Rating	125 VAC

CONN PLUG FMALE MINI XLR 4P SLDR

Part	Contact Material	Material Flammability Rating	Shell Finish	Fastening Type	Shielding	Orientation	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Backshell Material, Plating	Primary Material	Contact Finish - Mating	Shell Size - Insert	Color	Number of Positions	Insert Material	Current Rating (Amps)	Mounting Type	Applications	Features	Shell Material	Connector Type
Switchcraft Inc. TA4FSHF	Copper Alloy	UL94 V-0	Nickel	Latch Lock	Shielded	Keyed	125 VAC	85 °C	-55 °C	Solder	Copper Alloy, Nickel	Metal	Silver	Mini XLR	Silver	4	Thermoplastic	5 A	Free Hanging (In-Line)	Audio, Medical	Backshell, Cable Clamp, Ground, Strain Relief	Copper Alloy	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder
